Fujitsu PRIMERGY RX2540 M1 - Replacing the Connector Card; Preliminary Steps; Removing the SAS Expander Board; Removing the Defective Connector Card

148 Upgrade and Maintenance Manual RX2540 M1
Hard disk drives / solid state drives
7.3.5 Replacing the connector card
7.3.5.1 Preliminary steps
Ê "Locating the defective server" on page 51
Ê "Disabling or suspending BitLocker functionality" on page 69
Ê "Shutting down the server" on page 53
Ê "Disconnecting power cords" on page 54
Ê "Getting access to the component" on page 55
Ê "Removing the fan box" on page 154
7.3.5.2 Removing the SAS expander board
Ê Remove the assembled expander holder as described in section "Removing
the SAS expander board" on page 137.
7.3.5.3 Removing the defective connector card

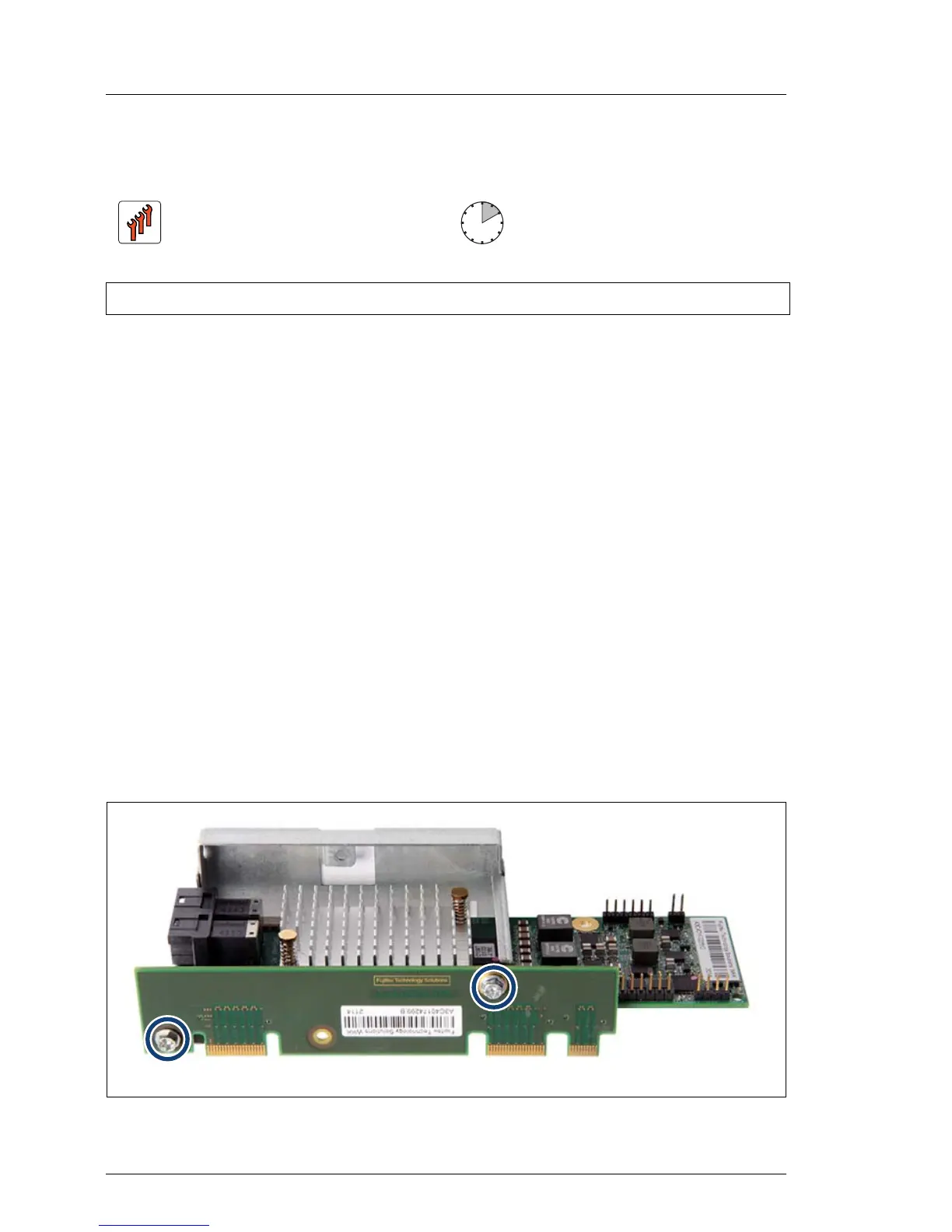

Figure 62: Removing the connector card
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
