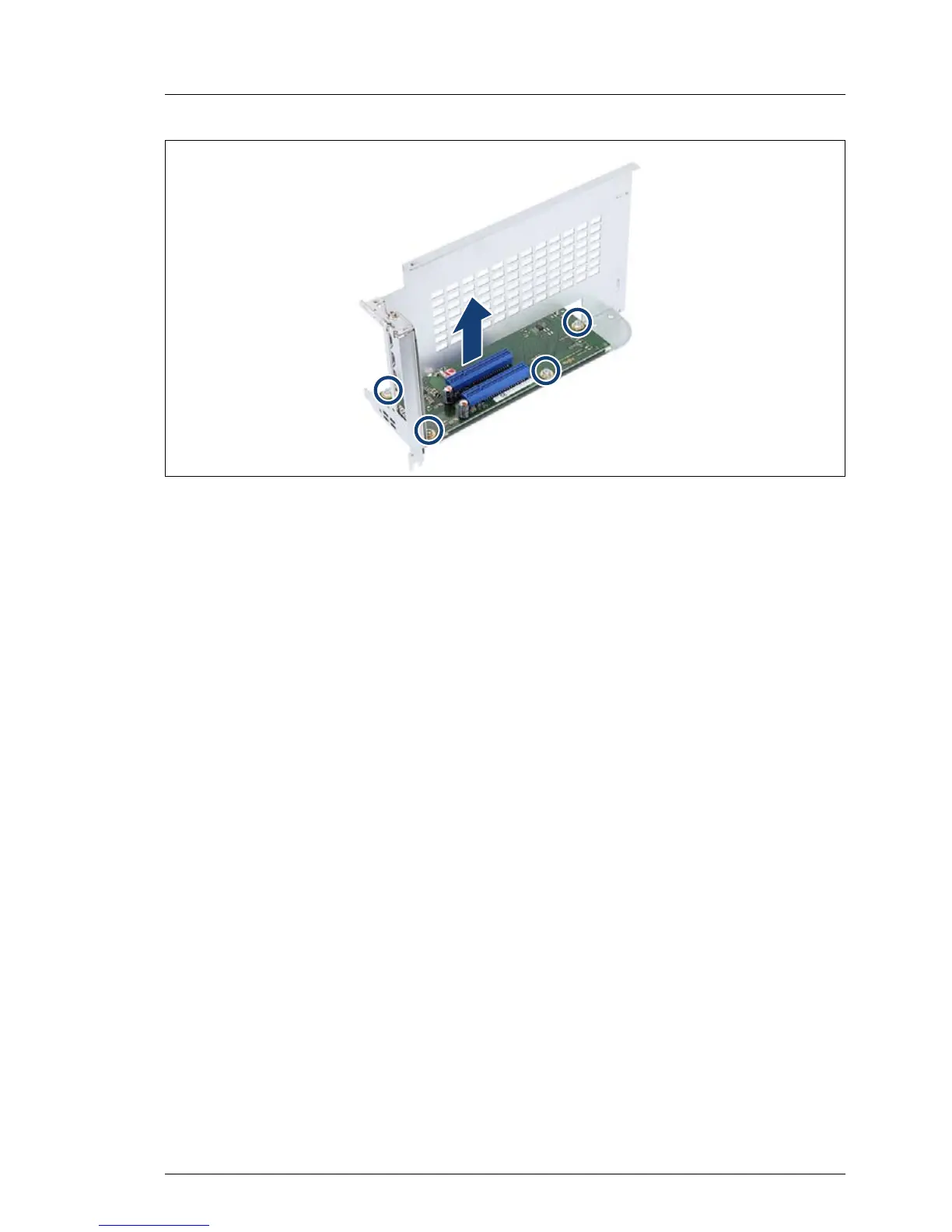

Figure 112: Removing a riser card
Ê Remove four screws (see circles).
Ê Take the riser card out of the riser card holder.
9.5.6.3 Installing the new riser card
Ê Install the new riser card as described in section "Installing a riser card (HL)"
on page 187.
Ê Install the expansion card as described in section "Installing an expansion
card in a riser module (HL)" on page 187.
Ê If applicable, install the riser module 1 as described in section "Installing the
riser module 1 (HL)" on page 190.
Ê If applicable, install the riser module 2 as described in section "Installing the
riser module 2 (HL)" on page 200.
9.5.6.4 Connecting cables to the expansion card
Ê If applicable, connect internal cables to the expansion card.
I For a complete cabling overview, please refer to section "List of used
cables" on page 411.
