Fujitsu PRIMERGY RX2540 M1 - Installing a GPGPU Card in a Riser Module (FL); Replacing the Heat Sink (FL); Removing the Slot Cover (Riser Module 1)

RX2540 M1 Upgrade and Maintenance Manual 213
Expansion cards and backup units
9.6.1.4 Installing a GPGPU card in a riser module (FL)

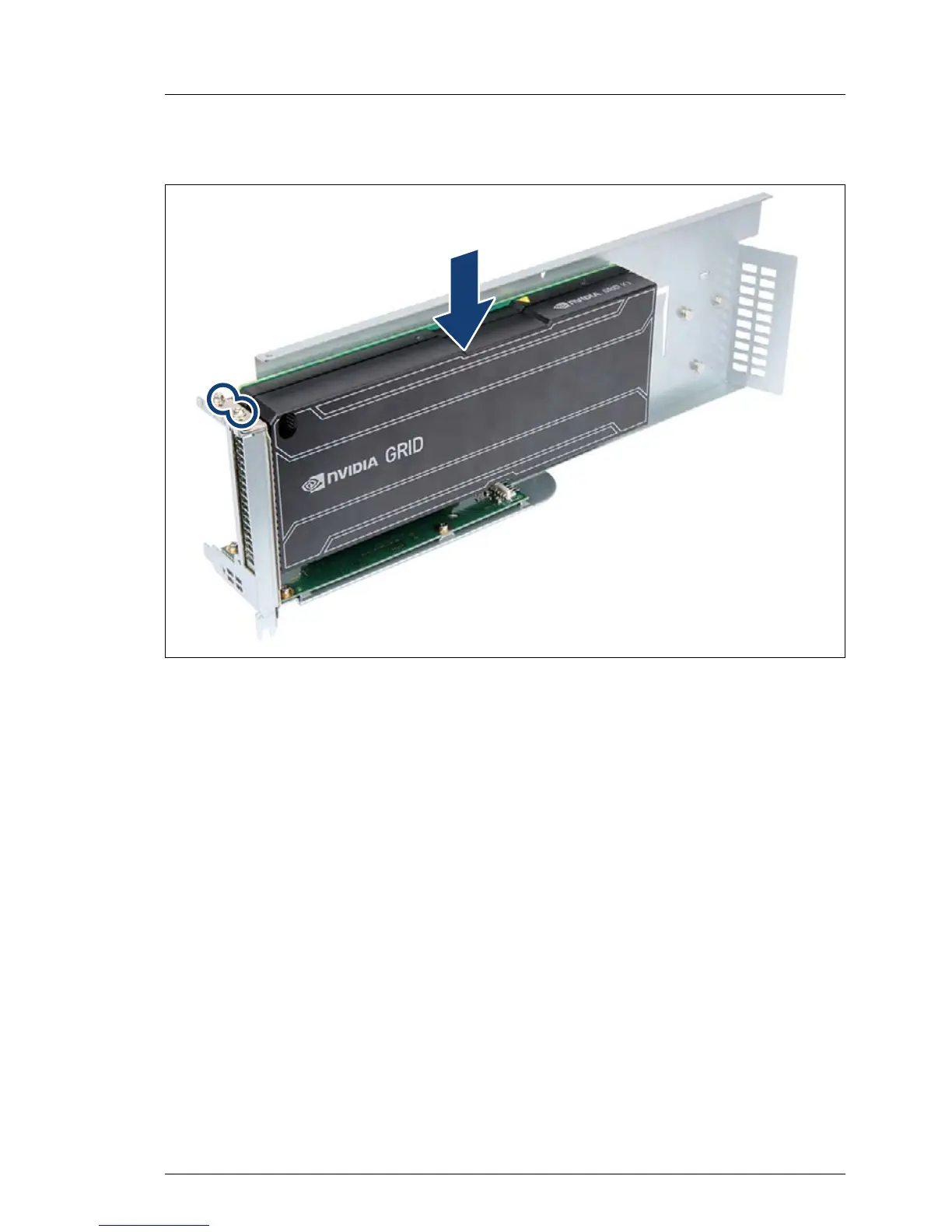

Figure 115: Installing a GPGPU card in a riser module
Ê Carefully insert the GPGPU card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
Ê Fasten the GPGPU card with two screws.
9.6.1.5 Replacing the heat sink (FL)
Ê Replace the standard processor heat sink with the processor heat sink for
GPGPU as described in section "Replacing processor heat sinks" on
page 312.
9.6.1.6 Removing the slot cover (riser module 1)
Ê Remove the slot cover as described in section "Removing the slot cover
(riser module 1)" on page 188.
