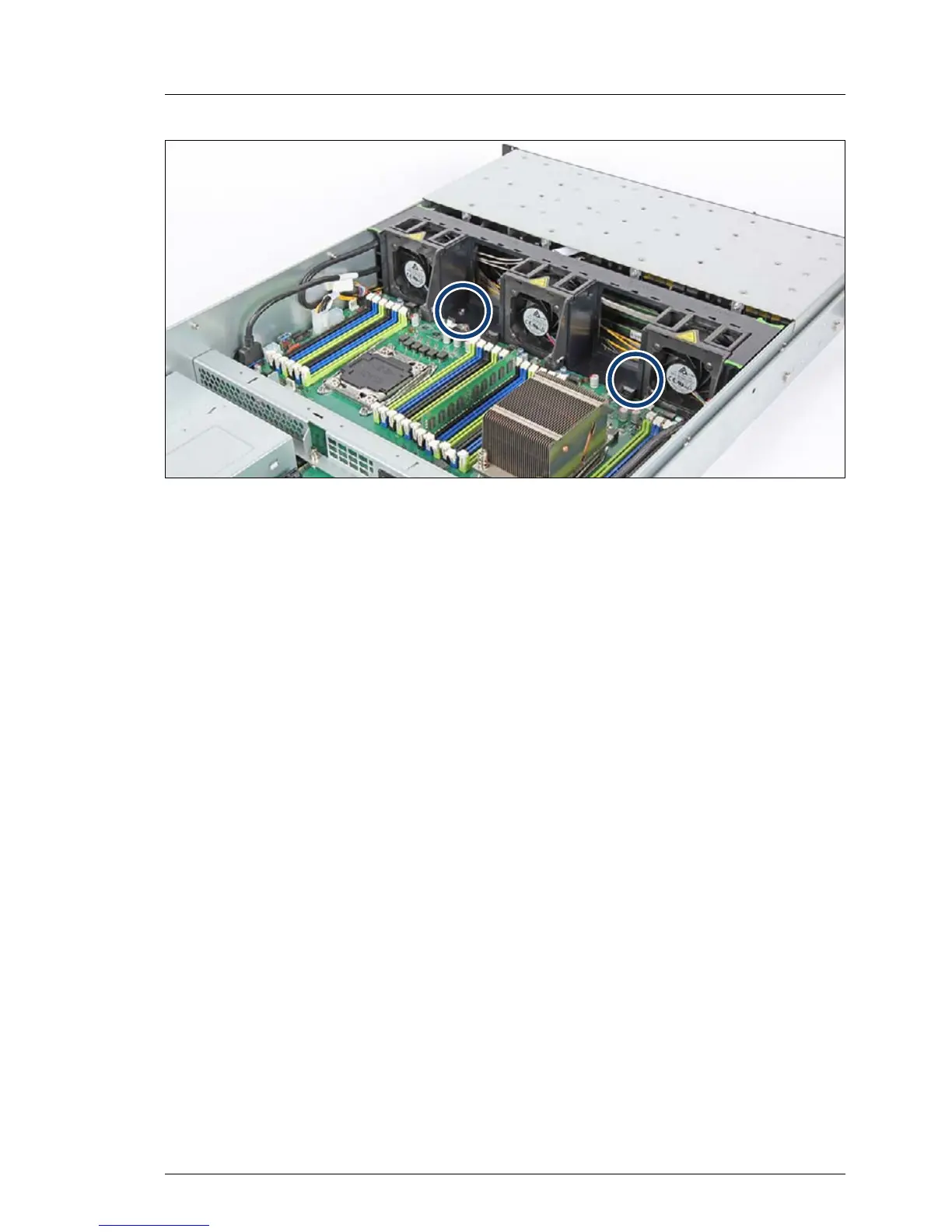

Figure 69: Installing the fan box (B)
Ê Fasten the fan box with the 2 screws (M3x 6 mm 0.6 Nm) (see circles).
Ê Install the two fan modules see section "Installing a system fan" on
page 153.
8.3.4 Concluding steps
Ê "Reassembling" on page 61
Ê "Connecting the server to the power source" on page 66
Ê "Switching on the server" on page 67
