Fujitsu PRIMERGY RX2540 M1 - Removing the Rear Cover (Riser Module 1); Installing the Riser Module 1 (FL)

214 Upgrade and Maintenance Manual RX2540 M1
Expansion cards and backup units
9.6.1.7 Removing the rear cover (riser module 1)
Ê Remove the rear cover as described in section "Removing the rear cover
(riser module 1)" on page 189.
9.6.1.8 Installing the riser module 1 (FL)

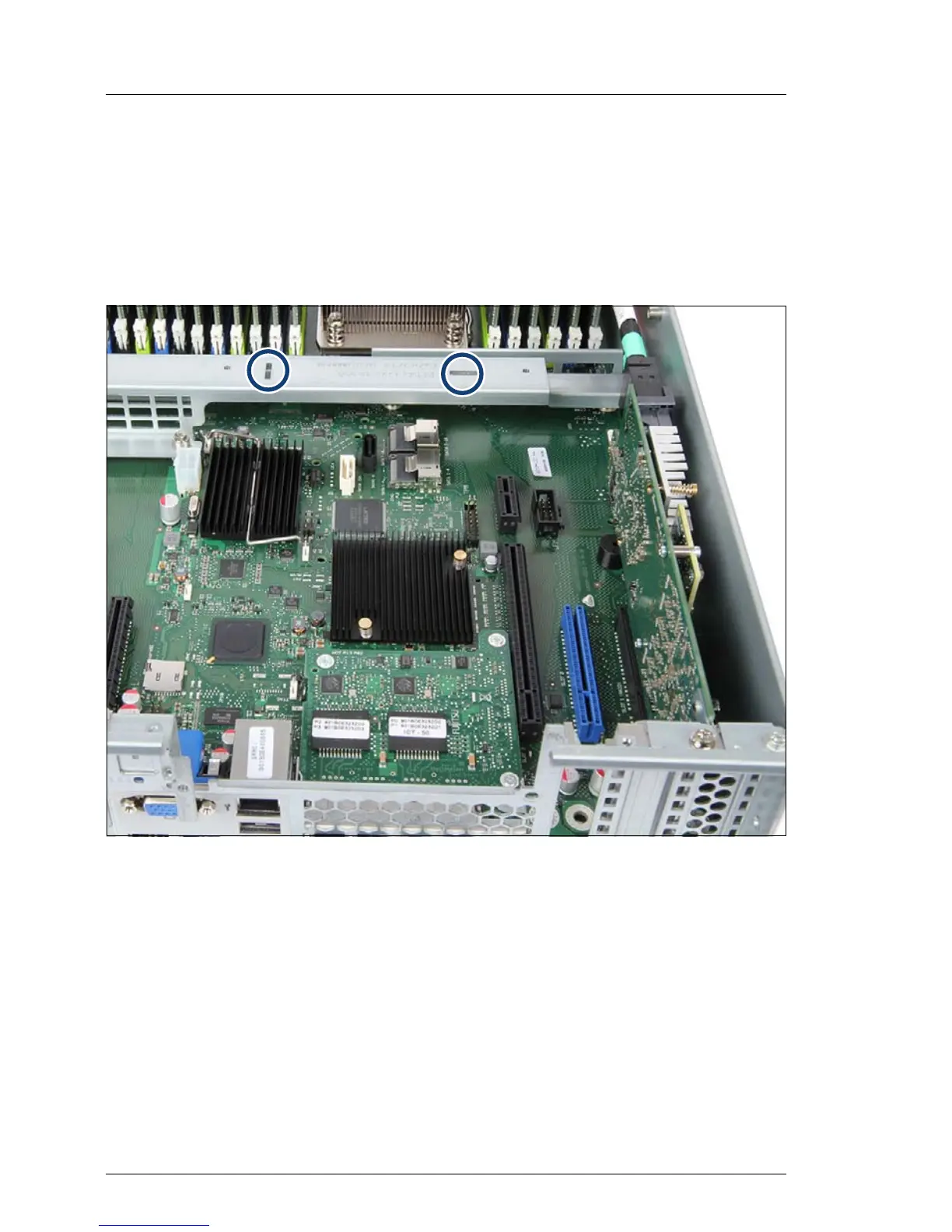

Figure 116: Positions of the recesses
Ê Take note of the two recesses (see circles).
