RX2540 M1 Upgrade and Maintenance Manual 129
Hard disk drives / solid state drives

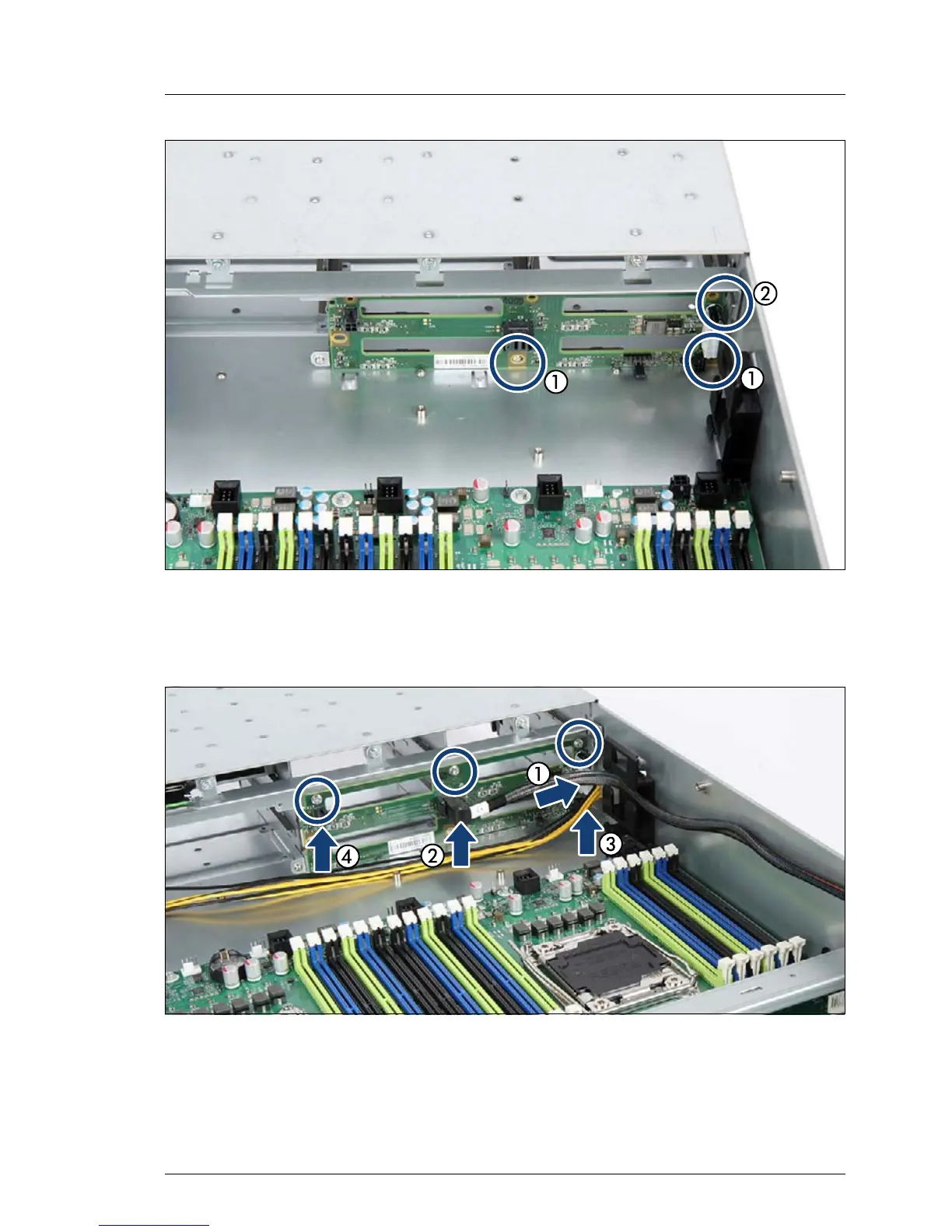

Figure 36: Installing the 3.5-inch HDD SAS backplane 1
Ê Regard the 3.5-inch HDD SAS backplane is seated in the recesses (2) and
centering pins (1).
Figure 37: Reconnecting cables to the 4x 3.5-inch HDD SAS backplane
Ê Reconnect all cables to the 3.5-inch HDD SAS backplane:
– Power cable (1)
