Expansion cards and backup units

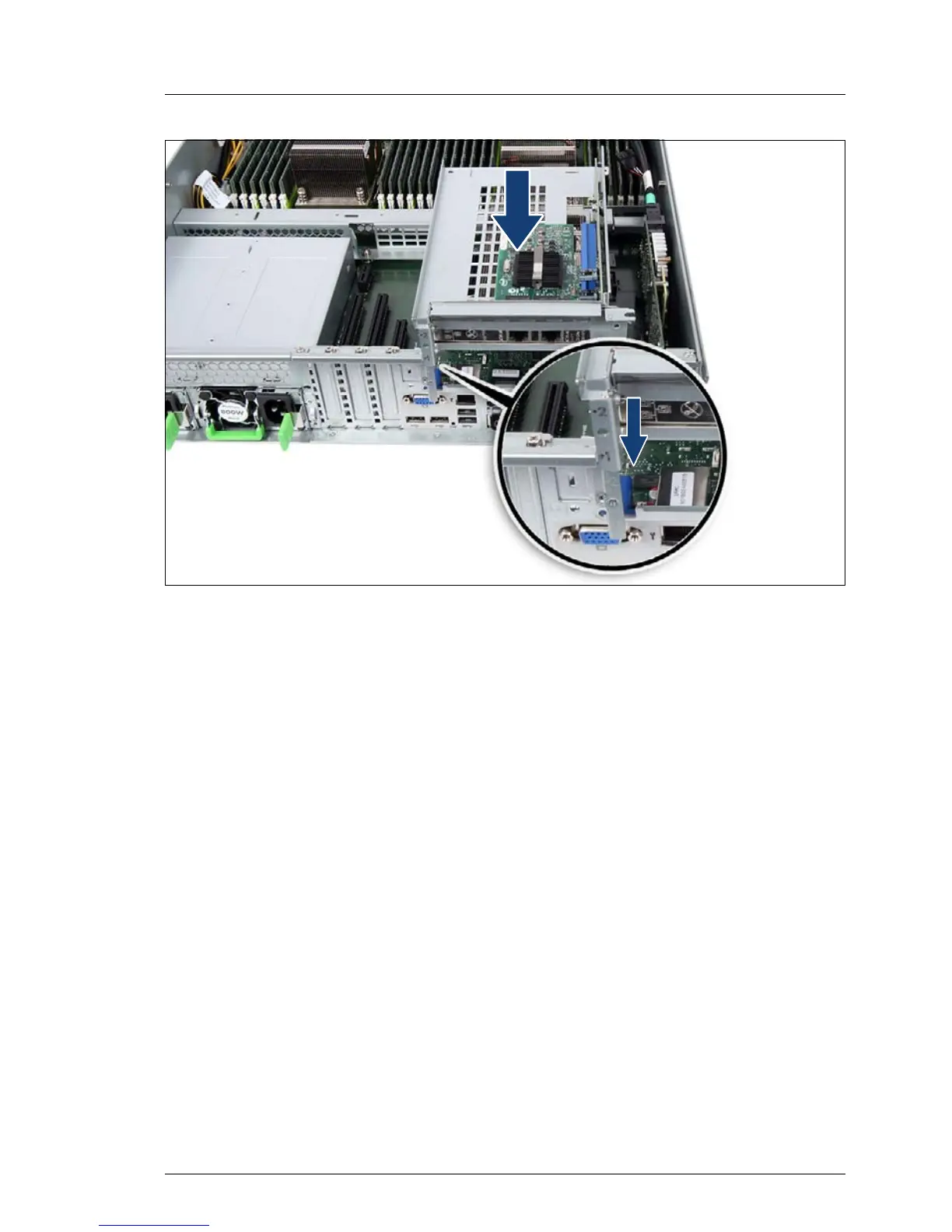

Figure 97: Installing the riser module 1 (A)
Ê Insert the riser module.
I Make sure that the riser module engages properly in the recesses
(see picture before).
Make sure that the bracket of the riser card holder is positioned
outside the chassis (see closeup).
Ê Carefully push down the riser module.
