322 Upgrade and Maintenance Manual RX2540 M1
Accessible drives

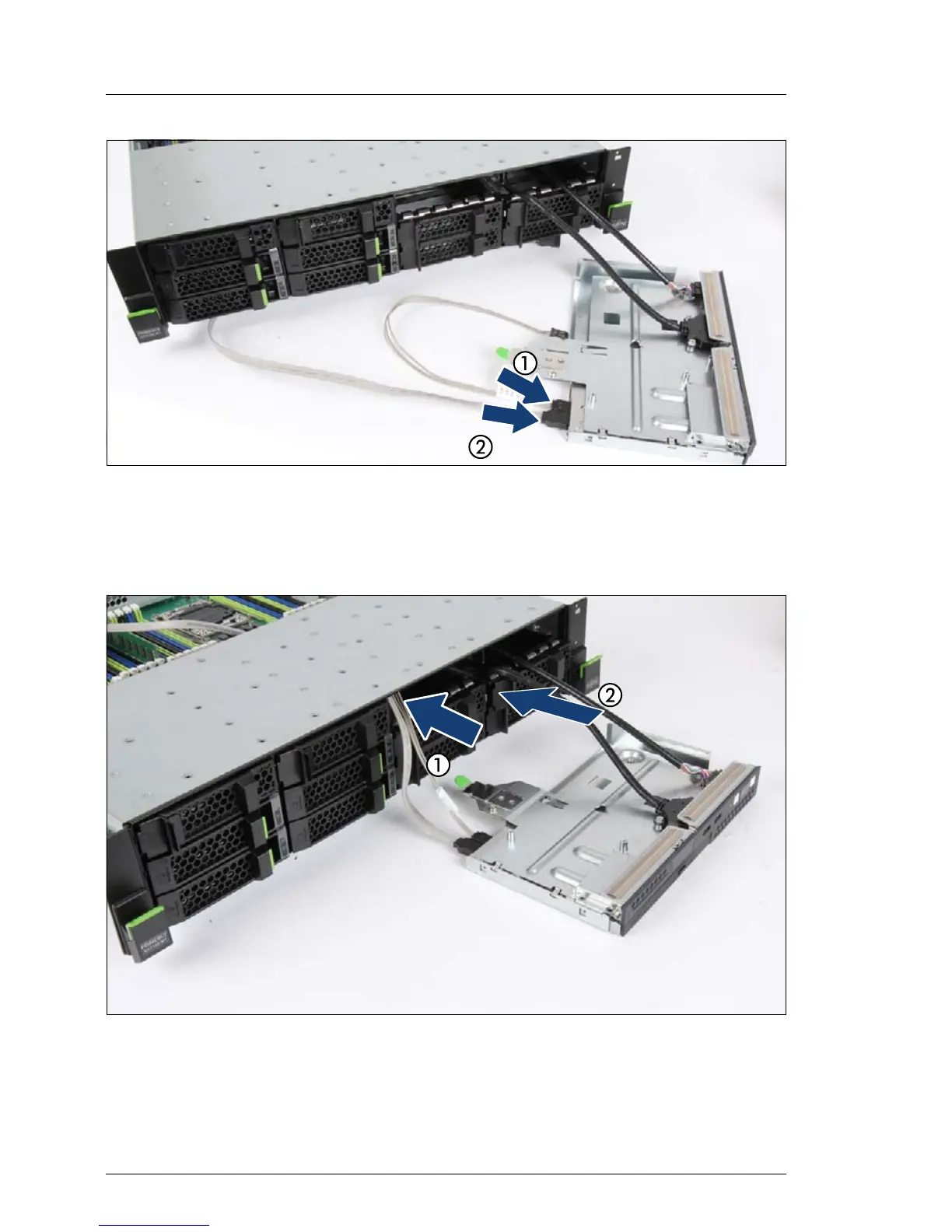

Figure 211: Installing the ODD
Ê Connect the power cable to the ODD (1).
Ê Connect the SATA cable to the ODD (2).
Figure 212: Installing the front panel module (A)
Ê Run the SATA and power cables through the ODD bay opening as shown
(1).
