RX2540 M1
Upgrade and Maintenance Manual 389
System board and components

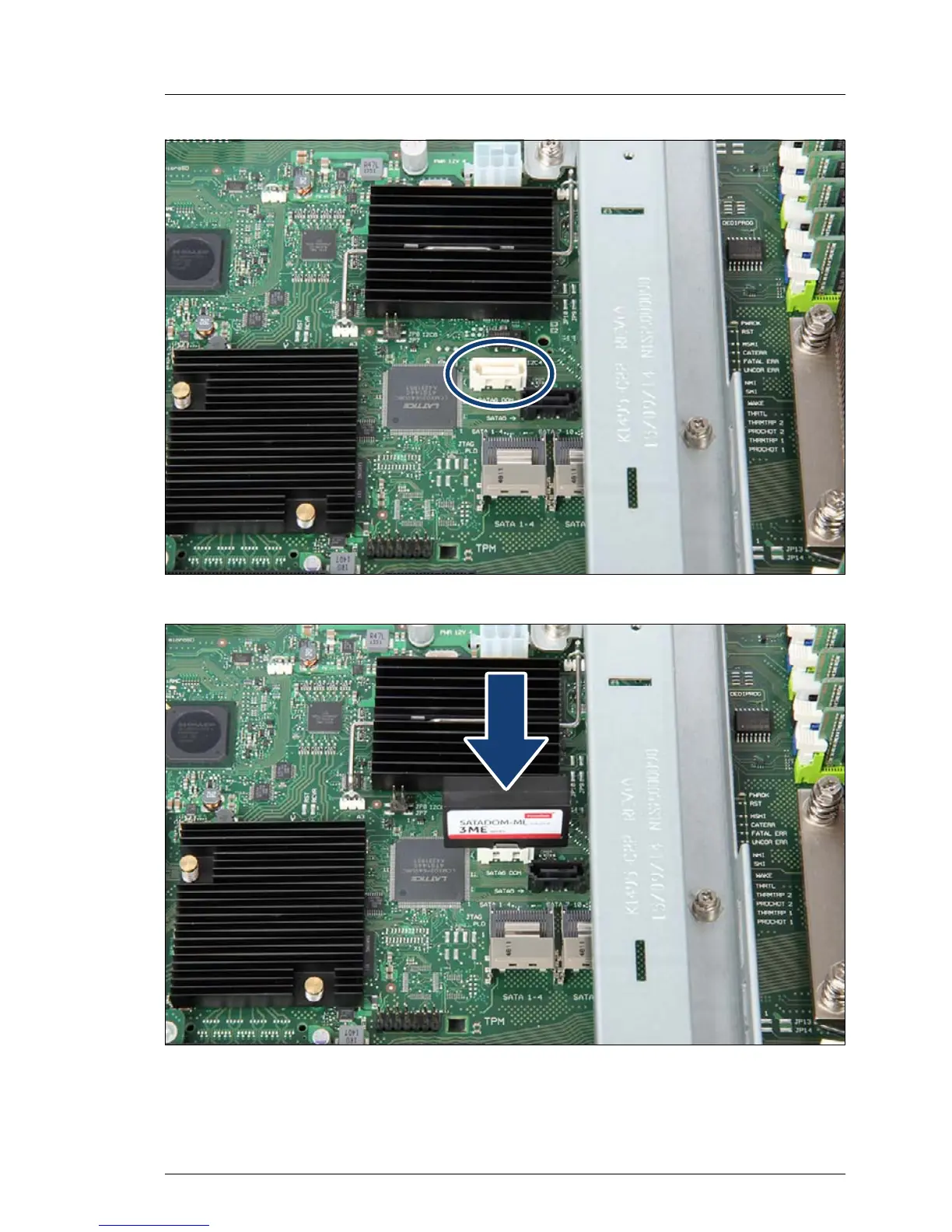

Figure 266: Connector SATA6 DOM
Figure 267: Installing the SATA DOM
Ê Connect the SATA DOM in the connector "SATA6 DOM" on the system
board.
