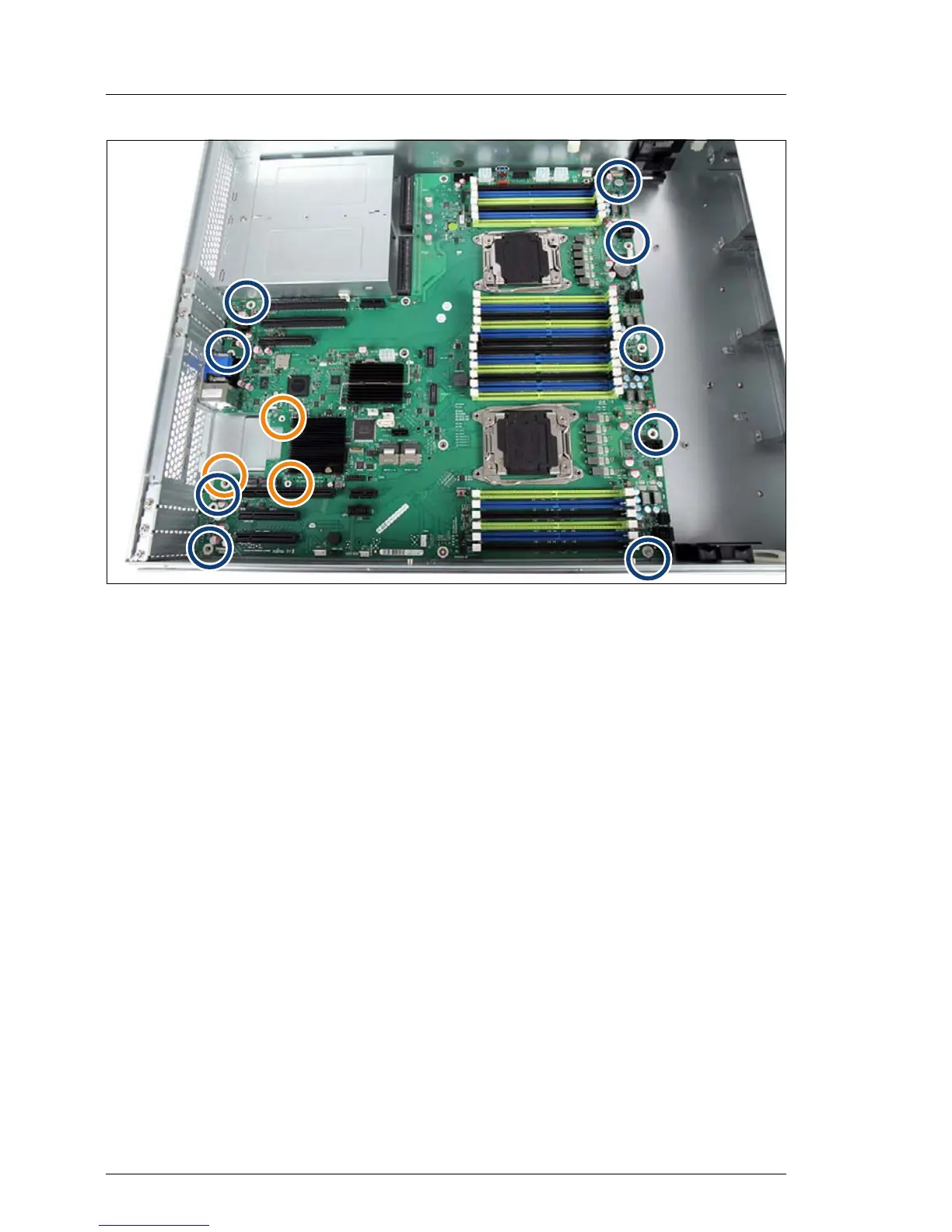

Figure 277: Securing the system board
Ê Insert the thee bolts for the DynamicLoM module (if applicable) or the three
screws that are installed in place of the DynamicLoM module (see orange
circles).
Ê Secure the system board with 9 screws (M3 x 6 mm, C26192-Y10-C68) (see
circles).
I Screw torque: 0.6 Nm (not applicable for the Japanese market)
Tighten the screws in a cross diagonal pattern.
