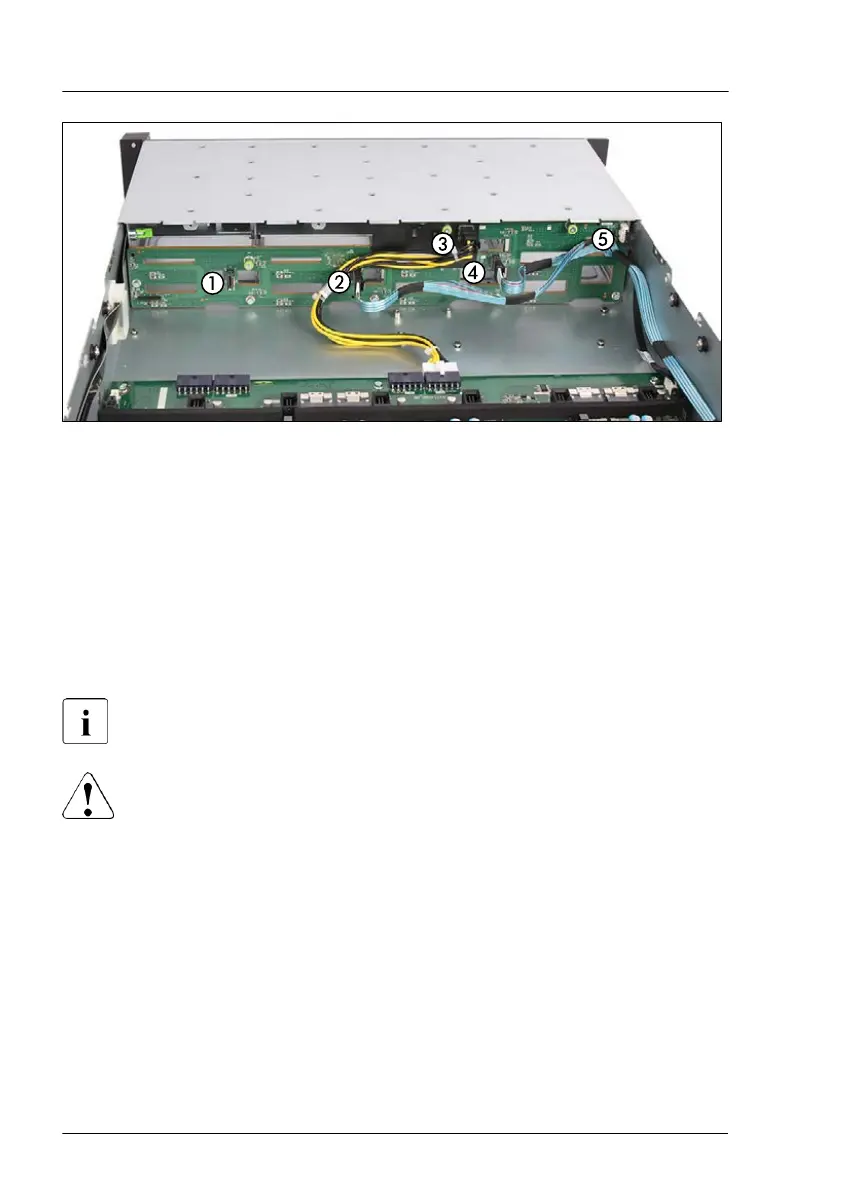

Figure 69: Connecting cables to the 10x 3.5-inch HDD backplane
▶
Connect the following cables to the HDD backplane:
1 SAS/SATA cable
2 SAS/SATA cable
3 Power cable
4 SAS/SATA cable
5 OOB cable
The cables are equipped with labels showing the right connector.
For the cable plan, see "Appendix B" on page
559.
CAUTION
Incorrect cabling may cause wrong LED identification of the HDD/SSD.
Misleading LED could lead to swapping out the wrong HDD/SSD, and
that will result in data loss.
▶
Check the correct cabling using the labels on the cables and the
cable plans.
Concluding steps
Hard disk drive (HDD) / solid state disk (SSD)
160 Upgrade and Maintenance Manual RX2540 M7
