Connect the following cables to the HDD backplane:
1 SAS/SATA cable
2 Power cable
3 SAS/SATA cable
4 OOB cable
For the cable plan, see "Appendix B" on page
559.
Example combo HDD backplane:

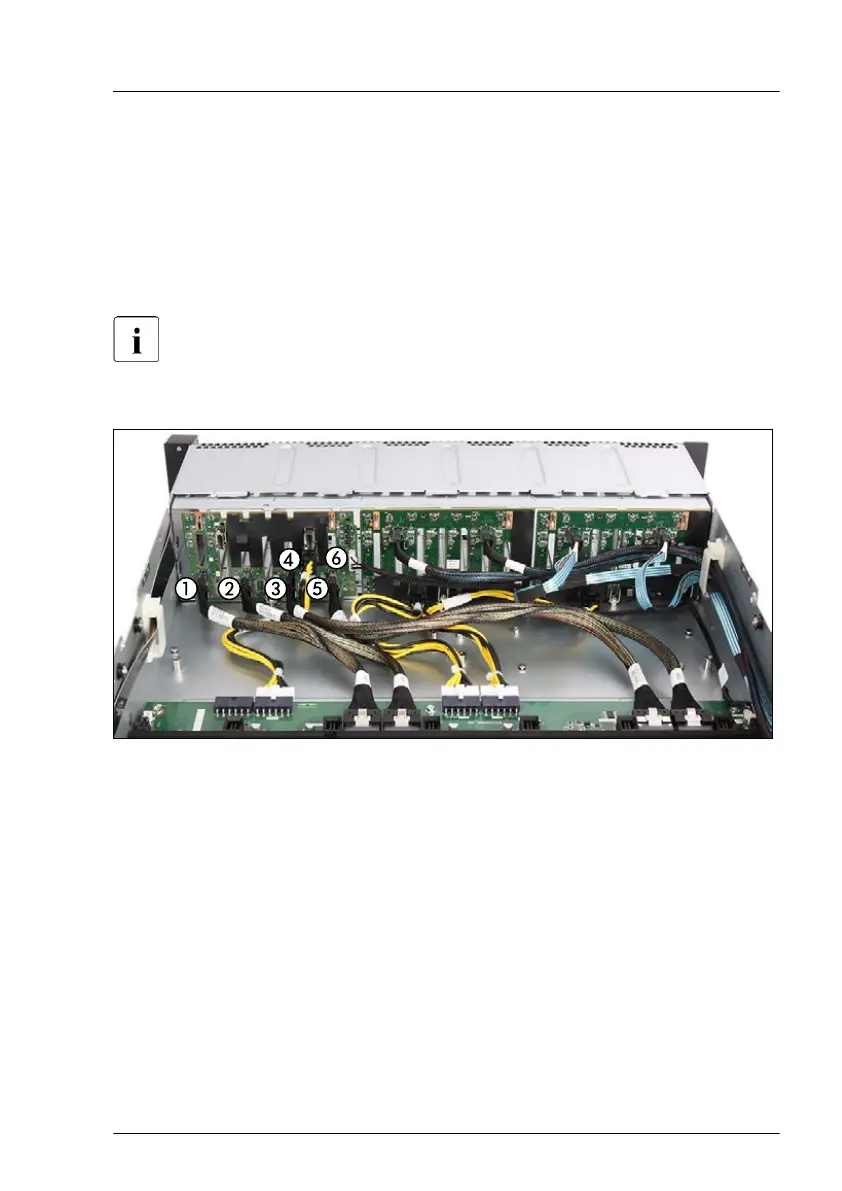

Figure 95: Connecting cables to the 8x 2.5-inch combo HDD backplane (example onboard
PCIe)
▶
Connect the following cables to the combo HDD backplane:
1 Slimline cable
2 Slimline cable
3 Slimline cable
4 Power cable
5 Slimline cable
6 OOB cable
Hard disk drive (HDD) / solid state disk (SSD)
