Connecting the M.2 interposer board
A

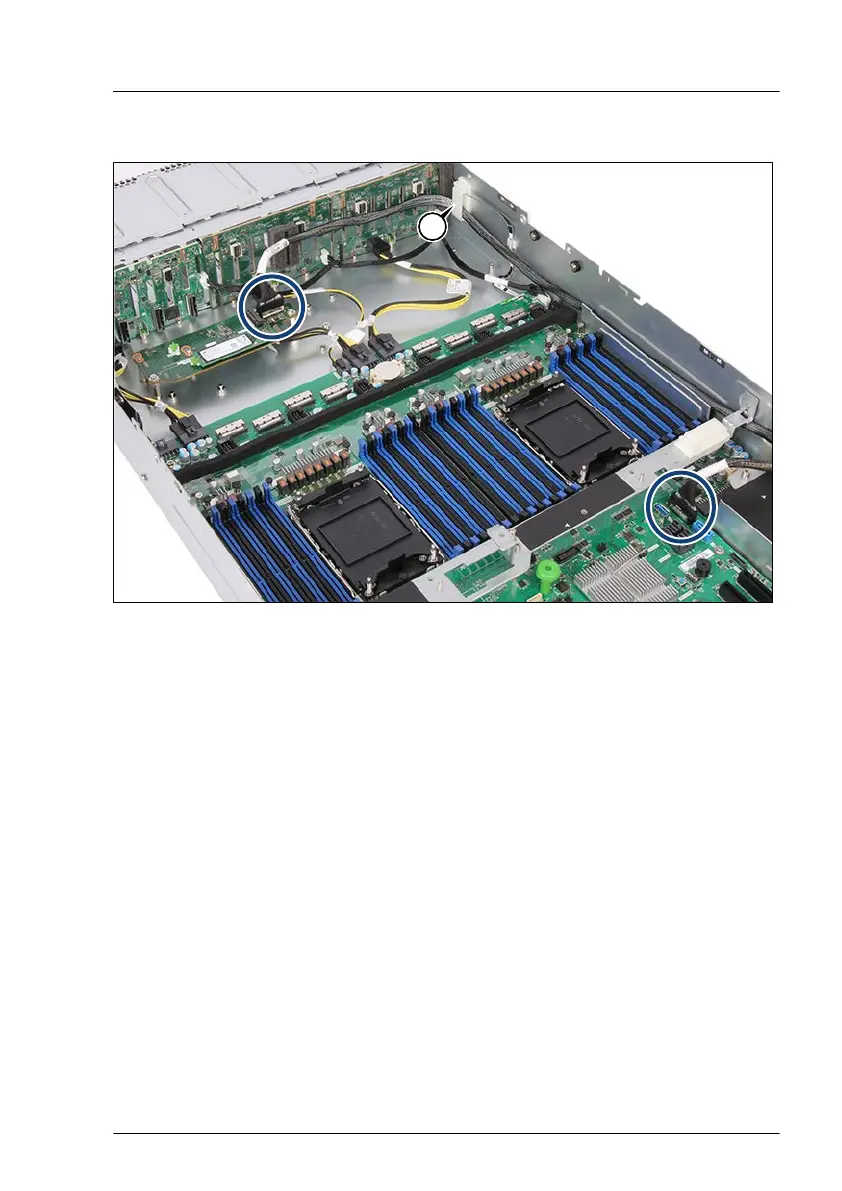

Figure 112: Connecting the M.2 interposer board
▶
Connect the M.2 interposer board cable to M.2 interposer board.
▶
Insert the M.2 interposer board cable in the cable clamp (A).
▶
Run the M.2 interposer board cable in the guide rail.
▶
Connect the M.2 interposer board cable to the connector "INTERPOSER 1"
on the system board (see circles).
▶
Connect the power cable to M.2 interposer board.
▶
Run the power cable over the M.2 interposer board cable.
▶
Connect the power cable to connector "PWR M2" on the system board.
Concluding steps
▶
If applicable, "Installing the SAS expander board holder" on page
205.
▶
If applicable, install the riser module 2, see "Installing a riser module" on
page 74.
