"Shutting down the server" on page
50.
▶
"Disconnecting the power cord" on page 50.
▶
"Getting access to the component" on page 55.
▶
"Removing the air duct" on page 80
▶
"Removing the fan cage" on page 76.
▶
If applicable, remove the riser module 2, see "Removing a riser module" on
page 72.
▶
If applicable, "Removing the SAS expander board holder" on page 208.
If the SAS expander board is installed, ensure that none of the cables
are strained or damaged during the installation of the M.2 interposer
board.
Installing the M.2 interposer board

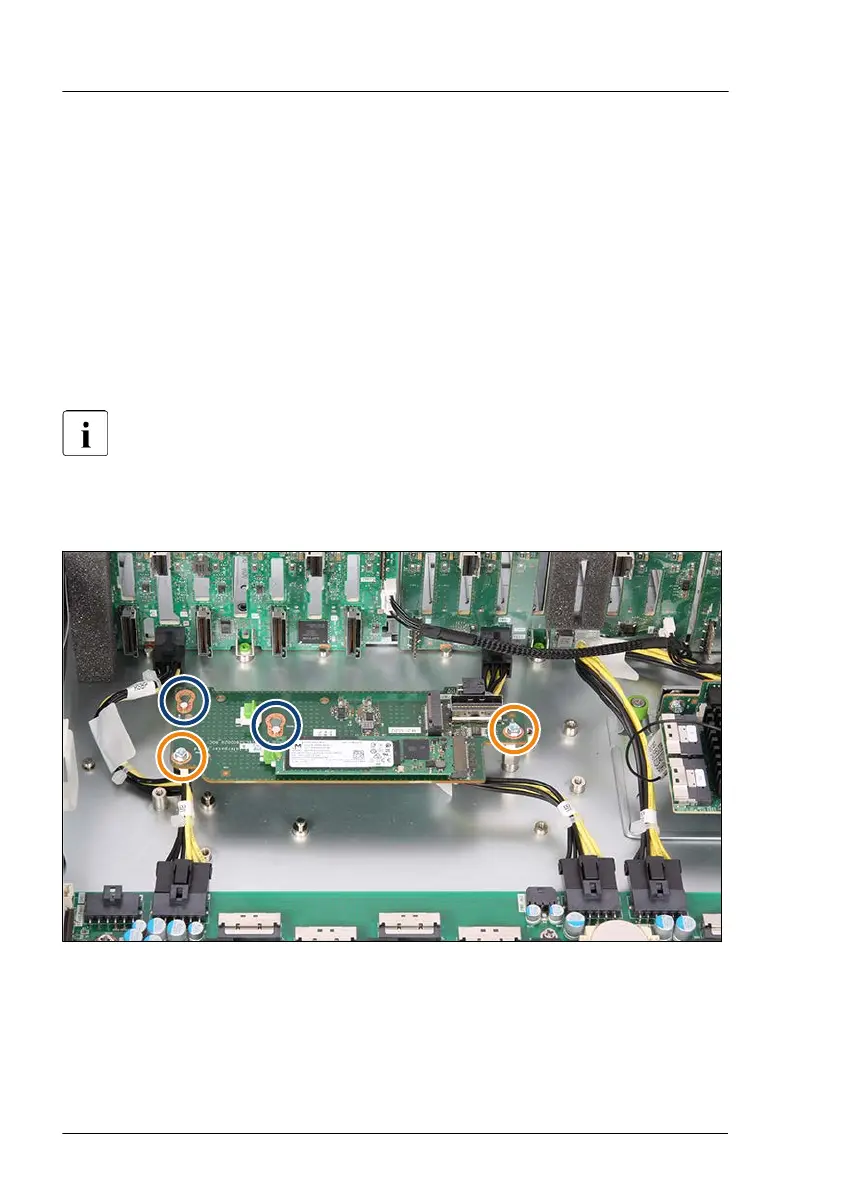

Figure 111: Installing the M.2 interposer board
▶
Position the M.2 interposer board on the four standof
fs of the chassis (see
circles).
▶
Fasten the two screws (see orange circles).
Hard disk drive (HDD) / solid state disk (SSD)
220 Upgrade and Maintenance Manual RX2540 M7
