Installing the expansion card in a riser module

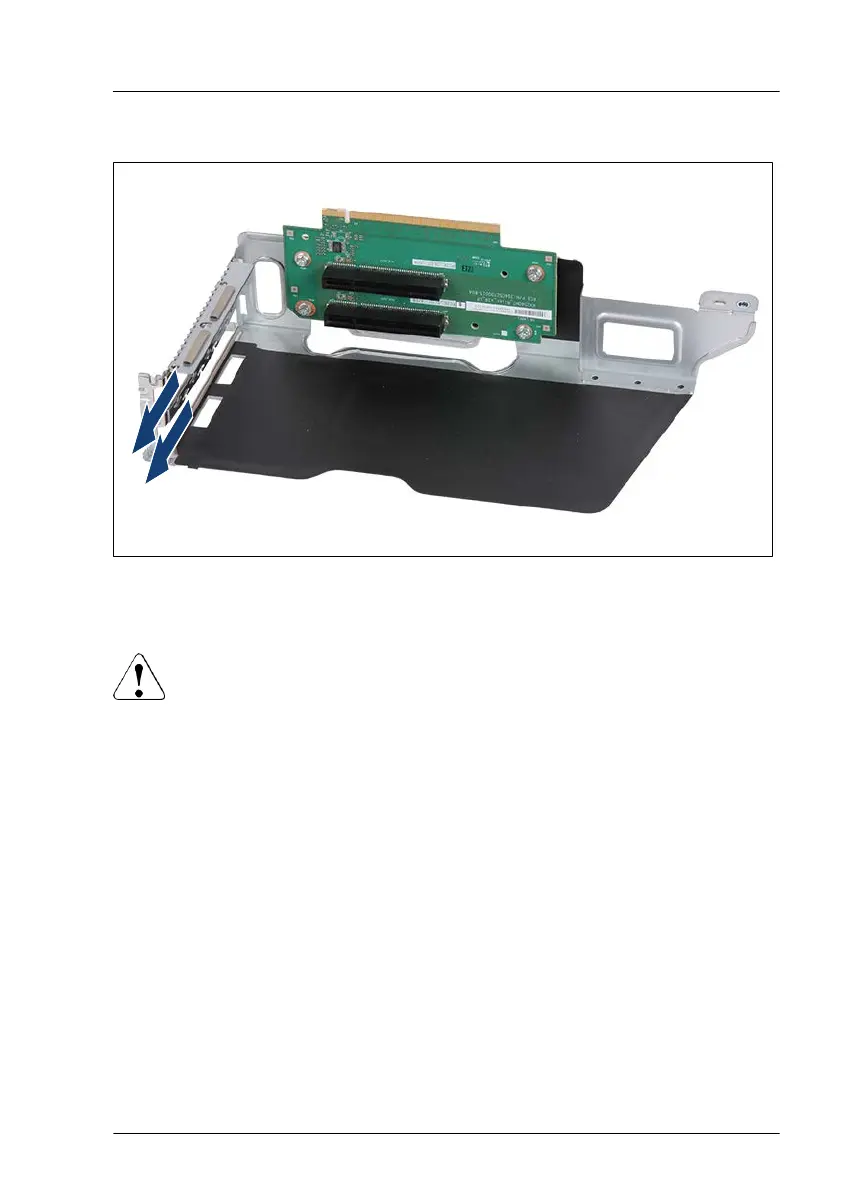

Figure 178: Removing the two slot covers
▶
Remove the two slot covers.
CAUTION
▶
Keep the slot cover for future use.
▶
If the expansion card is removed and not replaced with a new one,
the slot cover must be reinstalled due to cooling, to comply with
applicable EMC regulations and to protect against fire.
▶
Please read the documentation supplied with the expansion card.
▶
If applicable, install a slot bracket to the expansion card, see "Installing slot
brackets" on page
249.
Expansion cards and backup units
RX2540 M7 Upgrade and Maintenance Manual 311
