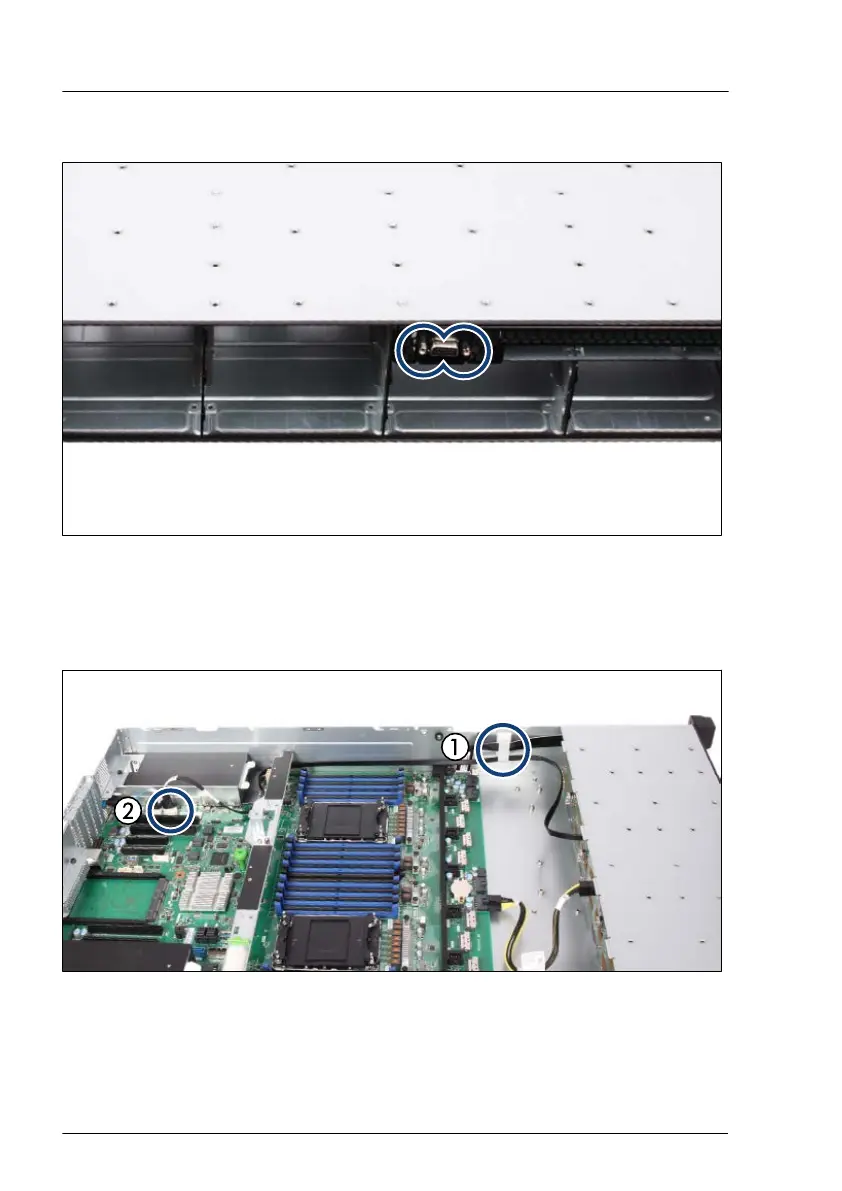

Removing the front VGA
Figure 320: Removing the front VGA
▶
Remove the two screws (see circles).
▶
Pull the front VGA cable out of the opening from the inner side.
Figure 321: Removing the front VGA cable
Front panel
474 Upgrade and Maintenance Manual RX2540 M7
