4.12.4 Installing accessible drive filler covers

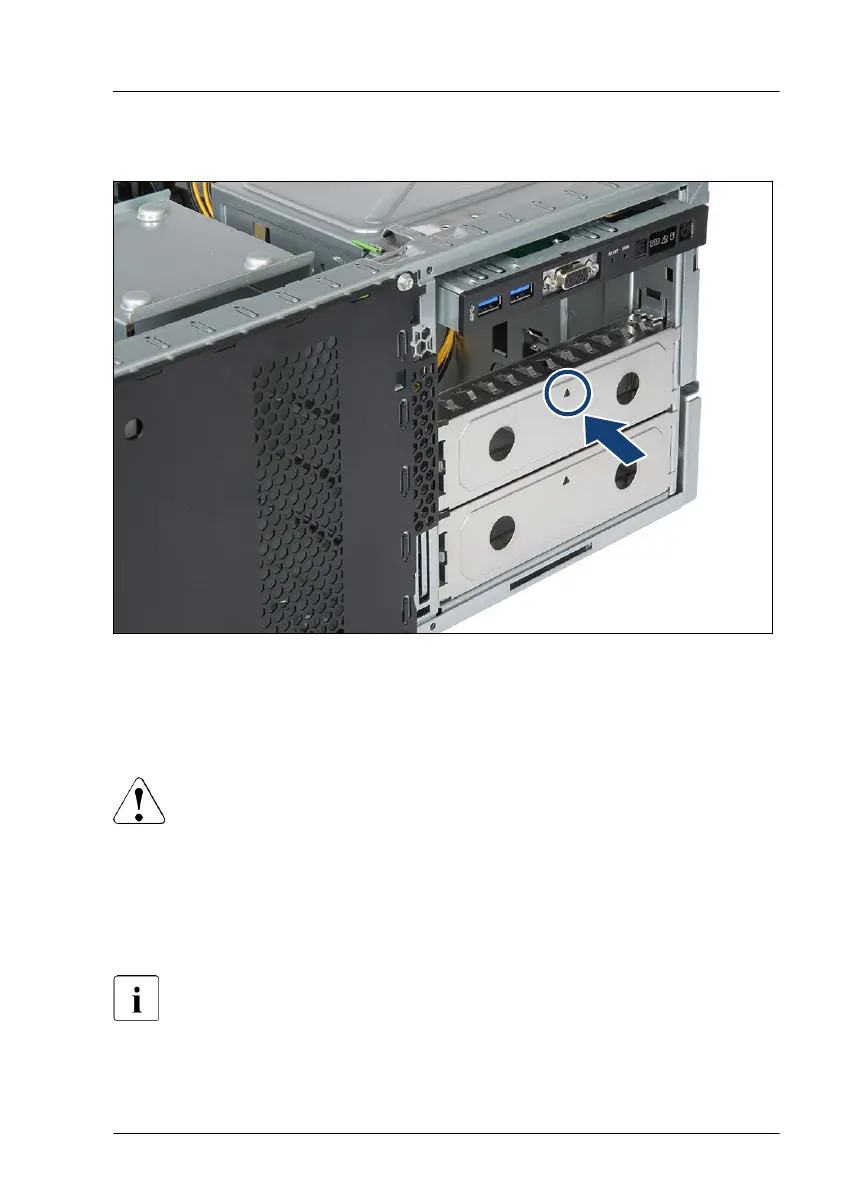

Figure 54: Installing an accessible drive filler cover
▶
Hold the accessible drive filler cover by its two handle recesses and insert it
into the empty installation bays with the punched-out arrow symbol facing up
(see circle).
CAUTION
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
4.12.5 Removing accessible drive covers
Removing accessible drive covers is illustrated by the example of the
floorstand model. In case of the rack front cover, the procedure is
identical.
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 101
