7.5.2.5 Configurations with additional PCIe-SSDs
HDD/SSD PCIe SSD SFF

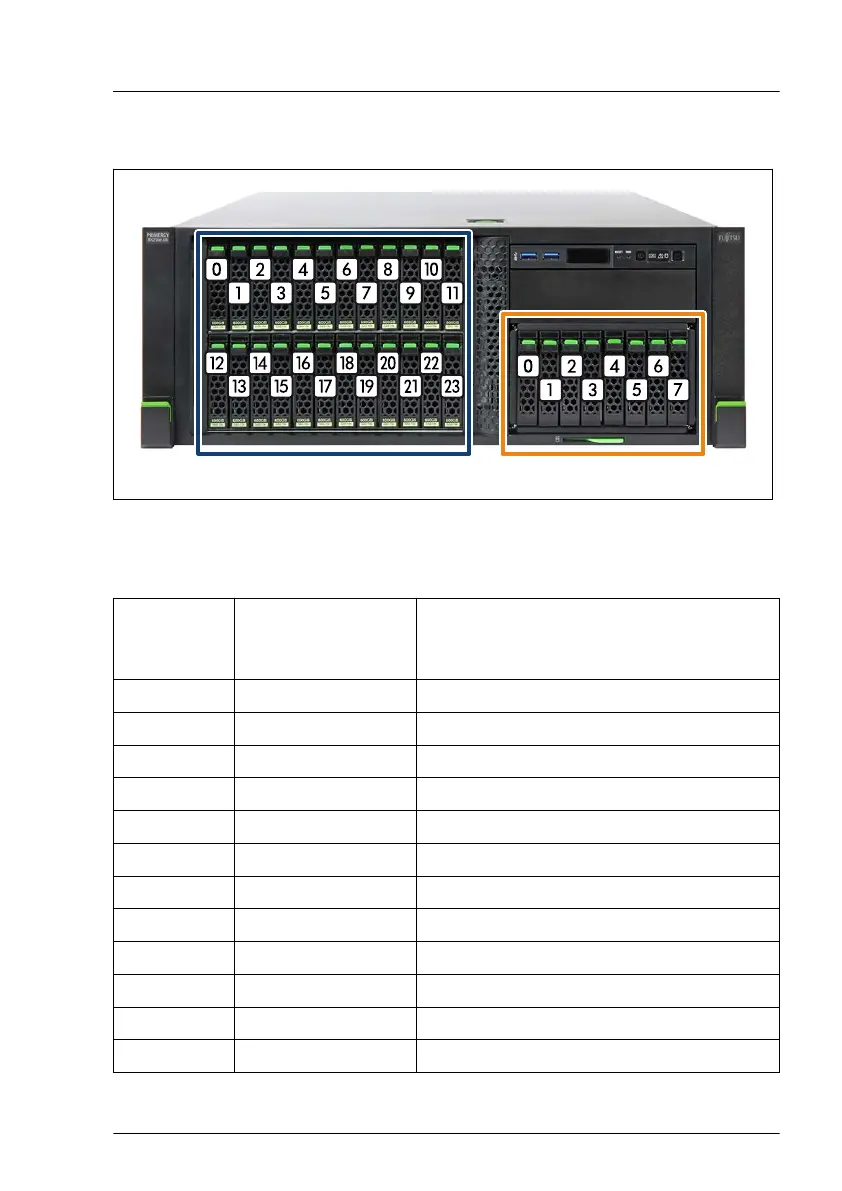

Figure 120: Configuration with up to 24 HDD/SSD modules and up to 8 PCIe SSDs SFF
With SAS expander board and one SAS controller
Position Logical drive
number
ServerView RAID Manager display
name
(Controller ID: Device ID)
[0] 0 Vendor Product (0:0)
[1] 1 Vendor Product (0:1)
[2] 2 Vendor Product (0:2)
[3] 3 Vendor Product (0:3)
[4] 4 Vendor Product (0:4)
[5] 5 Vendor Product (0:5)
[6] 6 Vendor Product (0:6)
[7] 7 Vendor Product (0:7)
[8] 8 Vendor Product (0:8)
[9] 9 Vendor Product (0:9)
[10] 10 Vendor Product (0:10)
[11] 11 Vendor Product (0:11)
Hard disk drive (HDD) / solid state disk (SSD)
