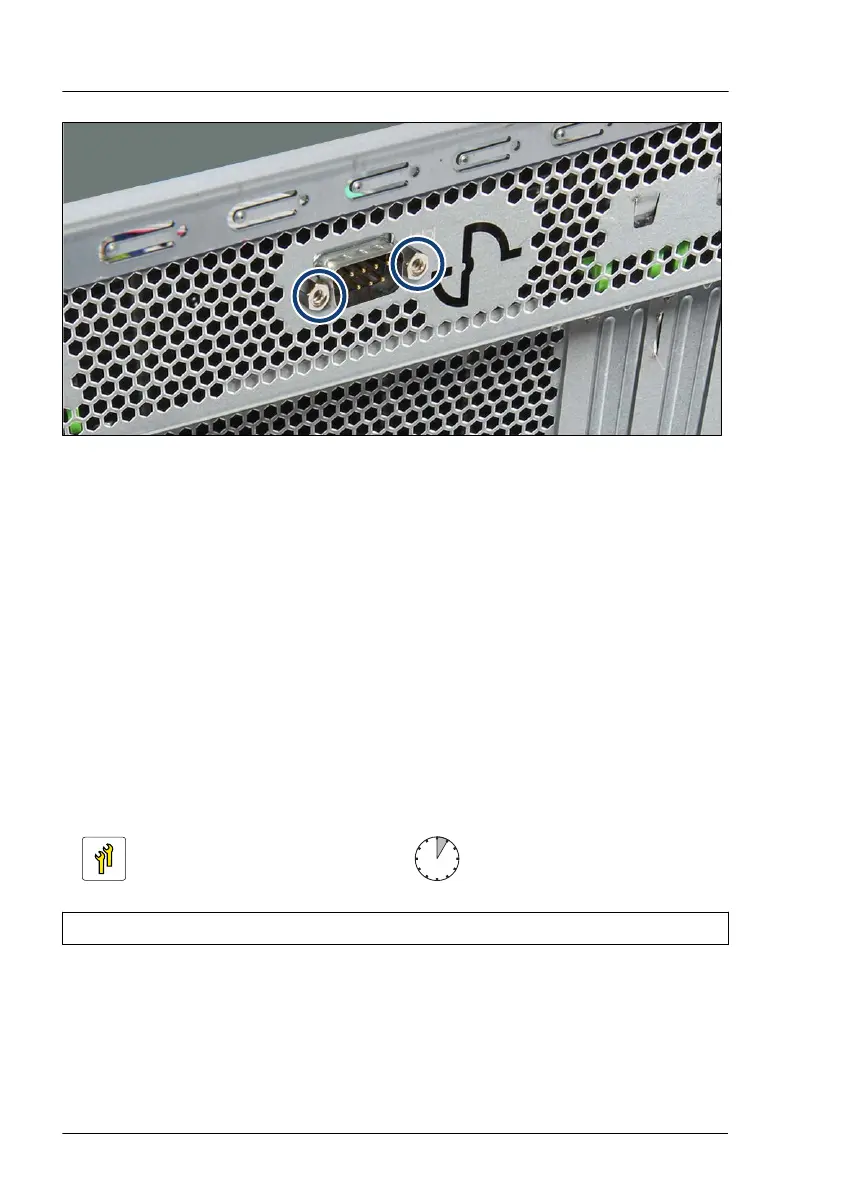

Figure 340: Connecting the serial interface cable
▶
Insert the serial interface into the opening.
▶
Fasten the serial interface with two hexagon bolts (see circles).
Concluding steps
▶
"Reassembling" on page
68
.
▶
"Connecting the power cord" on page 82.
▶
"Switching on the server" on page 83.
15.3 Removing the serial interface
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Hexagon screw driver 5 mm
Preliminary steps
▶
"Shutting down the server" on page 49
.
▶
"Disconnecting the power cord" on page 50.
Serial interface
