Fujitsu PRIMERGY TX2550 M5 - Data 3 X 8 X 2.5 1 Con Exp

25TX2550 M5
Data 3x 8x 2.5" 1Con Exp

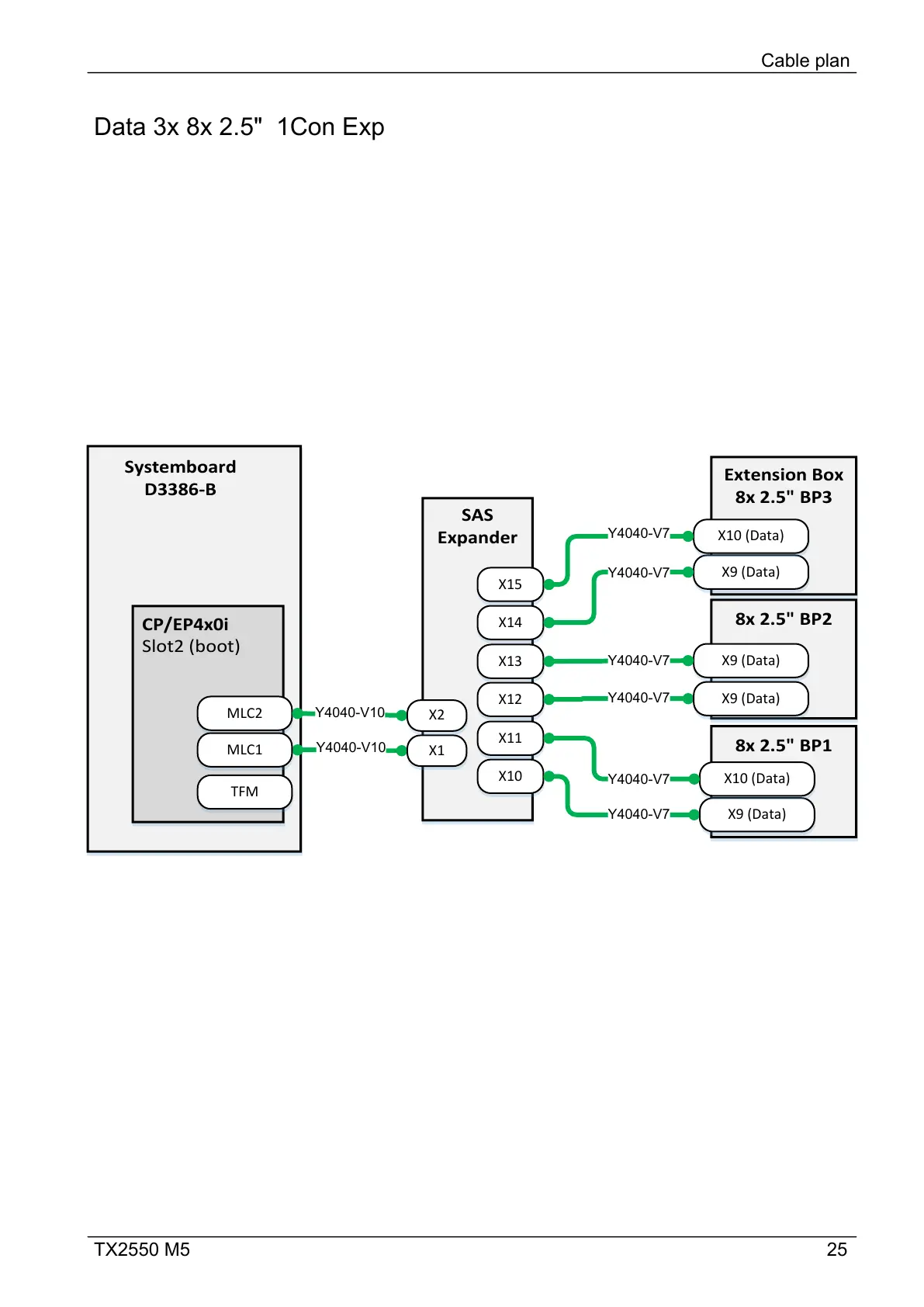

Cable plan
Systemboard
D3386-B
X9 (Data)
8x 2.5" BP2
Y4040-V10
CP/EP4x0i
Slot2 (boot)
MLC2
MLC1
TFM
Y4040-V10
SAS
Expander
X1
X2
X10
X11
X12
X13
X14
X15
Y4040-V7
X9 (Data)
X10 (Data)
Extension Box
8x 2.5" BP3
Y4040-V7
X9 (Data)
X9 (Data)
X10 (Data)
8x 2.5" BP1
Y4040-V7
Y4040-V7
Y4040-V7
Y4040-V7
