4.12.2 Closing the accessible drive locking bar
Floorstand model

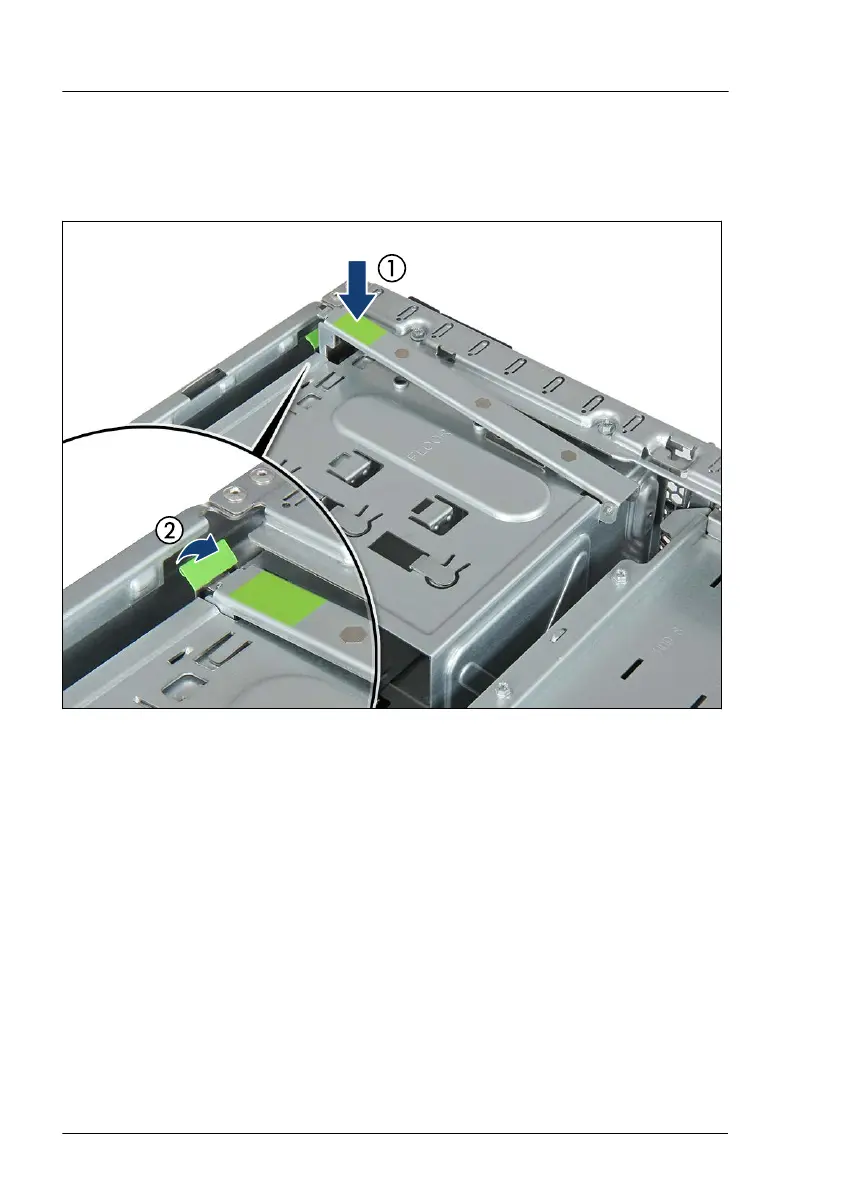

Figure 51: Closing the accessible drive locking bar (floorstand model)
▶
Close the locking bar (1) until it locks in place (2).
Basic hardware procedures
98 Upgrade and Maintenance Manual TX2550 M5
