Insert the key into the lock on the HDD bay cover.
▶
T
urn the key clockwise to unlock the front and side covers (1).
▶
Remove the key from the server front (2) and set aside for later use.
4.4.3.2 Removing the side cover

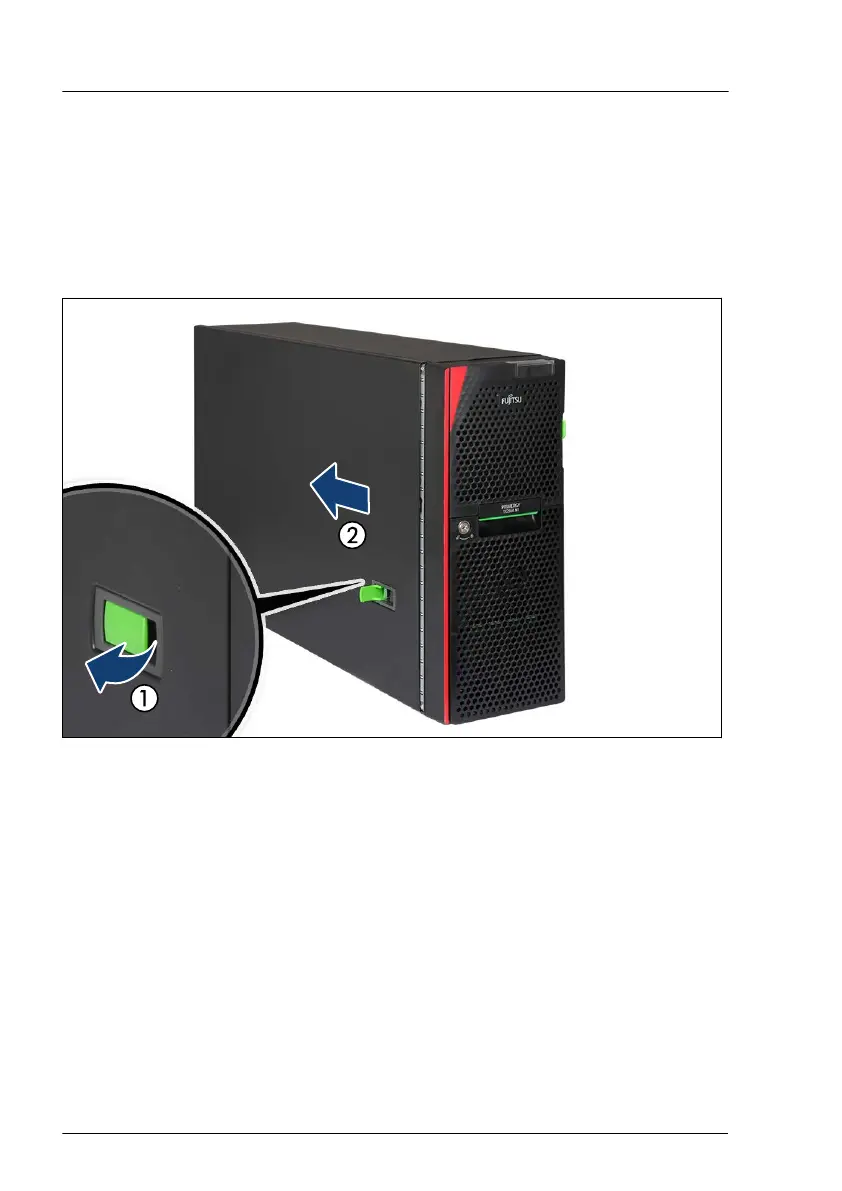

Figure 13: Removing the side cover (floorstand model)
▶
Pull on the locking lever (1). This will slide the side cover back disengaging
the locking mechanism.
▶
Remove the side cover (2) and set aside for later use.
Basic hardware procedures
