4.8.2 Riser modules
4.8.2.1 Removing the riser module

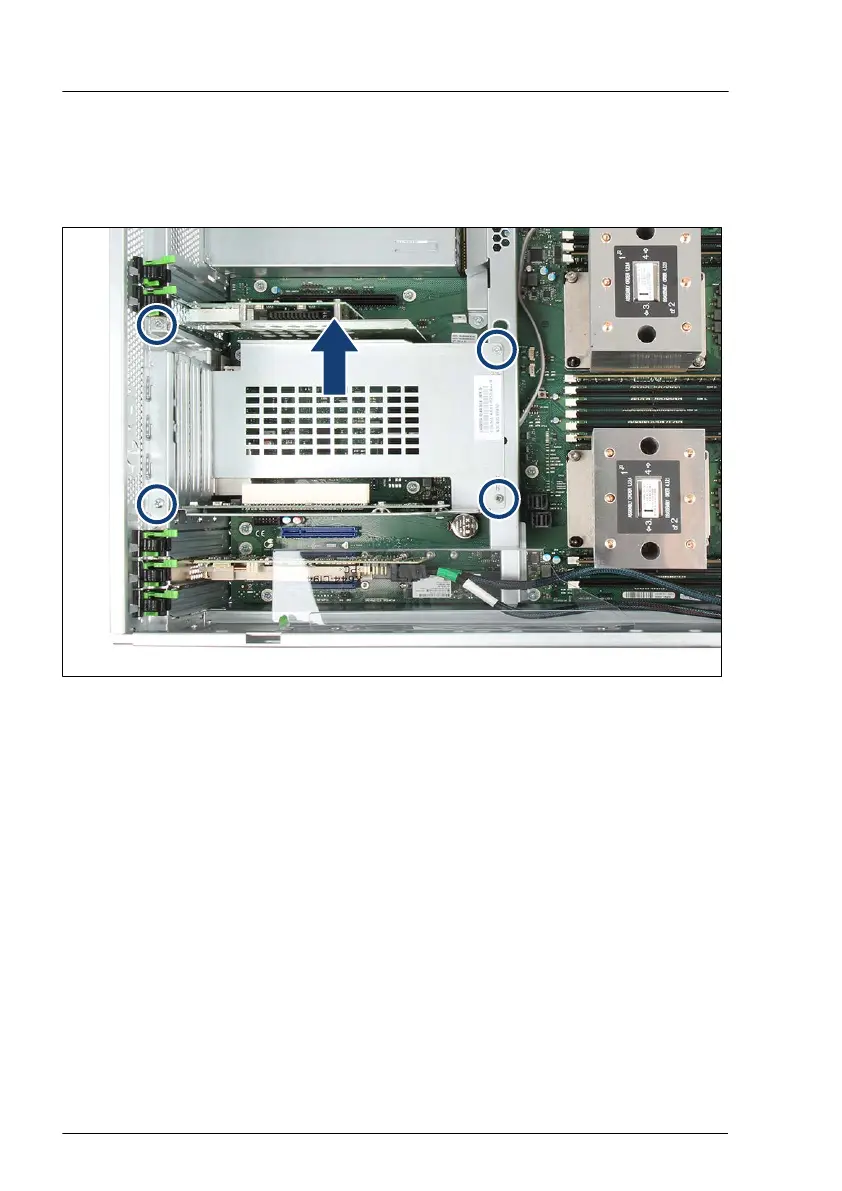

Figure 37: Removing the riser module
▶
Remove the four screws (see circles).
▶
If applicable, remove the slot cover lock.
▶
Carefully take out the riser module.
Basic hardware procedures
86 Upgrade and Maintenance Manual TX2550 M5
