32TX2550 M5

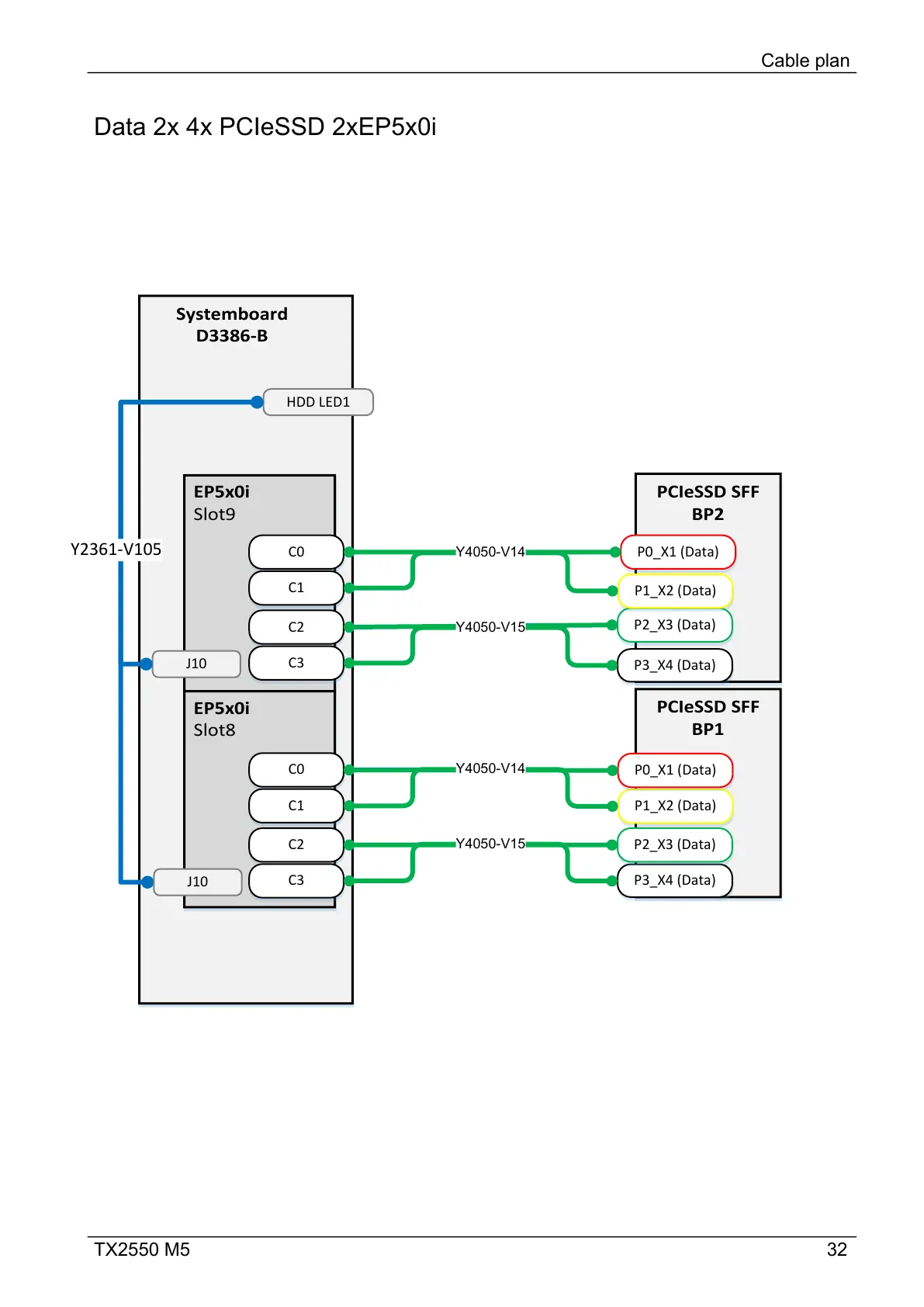

Data 2x 4x PCIeSSD 2xEP5x0i
Cable plan
Systemboard
D3386-B
P3_X4 (Data)
PCIeSSD SFF
BP1
EP5x0i
Slot9
EP5x0i
Slot8
C2
C3
P2_X3 (Data)
C0
C1
C2
C3
C0
C1
P1_X2 (Data)
P0_X1 (Data)
P3_X4 (Data)
PCIeSSD SFF
BP2
P2_X3 (Data)
P1_X2 (Data)
P0_X1 (Data)
Y4050-V14
Y4050-V15
Y4050-V14
Y4050-V15
HDD LED1
J10
J10
Y2361-V105
