39TX2550 M5

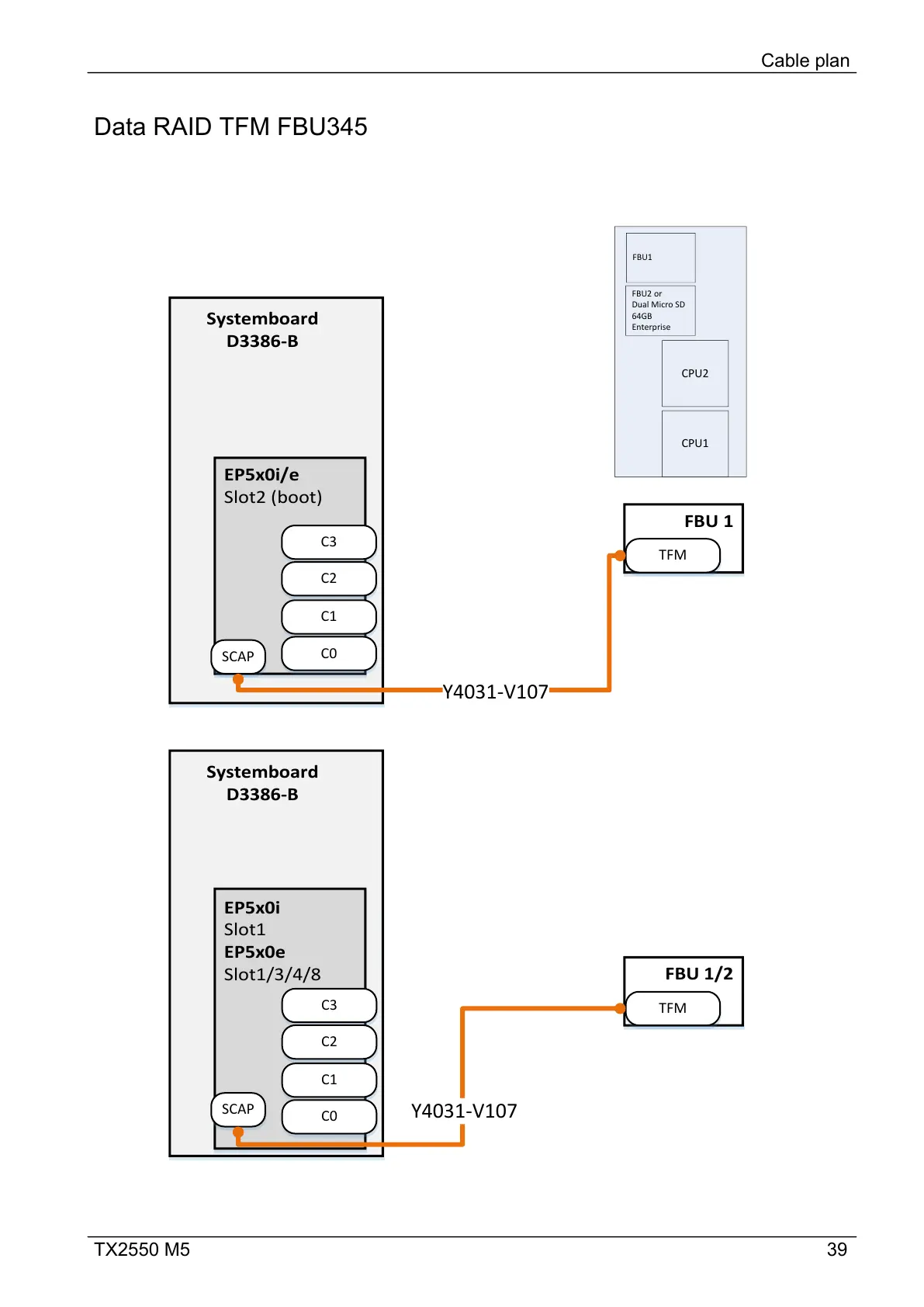

Data RAID TFM FBU345
Cable plan
FBU 1
TFM
Systemboard
D3386-B
EP5x0i/e
Slot2 (boot)
C1
C0
C3
C2
SCAP
Y4031-V107
FBU1
FBU2 or
Dual Micro SD
64GB
Enterprise
CPU2
CPU1
FBU 1/2
TFM
Systemboard
D3386-B
EP5x0i
Slot1
EP5x0e
Slot1/3/4/8
C1
C0
C3
C2
SCAP
Y4031-V107
