4.4.4 Removing the system air duct

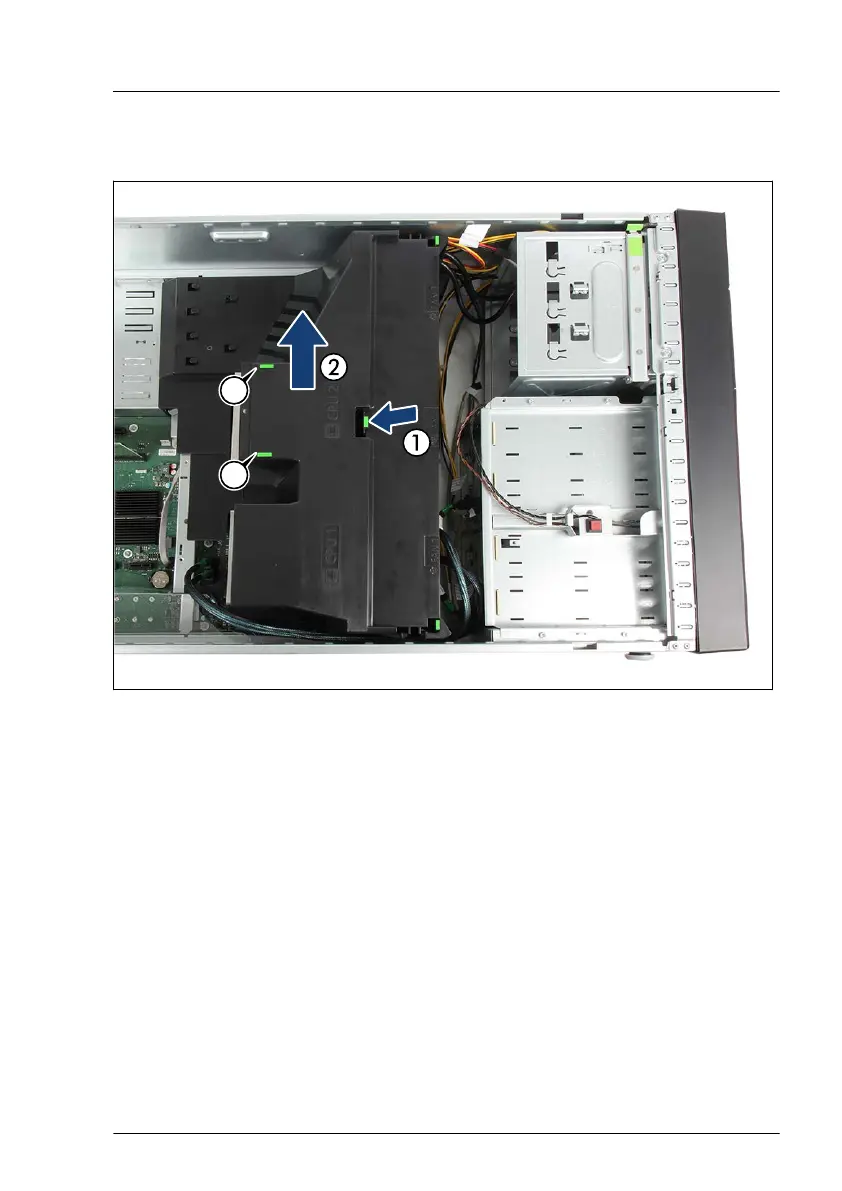

Figure 18: Removing the system air duct
▶
Press in on the locking tab (1) while slightly lifting up the system air duct.
▶
Remove the system air duct from the chassis (2).
Use the green touch points (A) to hold the system air duct.
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 67
