4.12 Handling accessible drive bays
4.12.1 Opening the accessible drive locking bar
Floorstand model

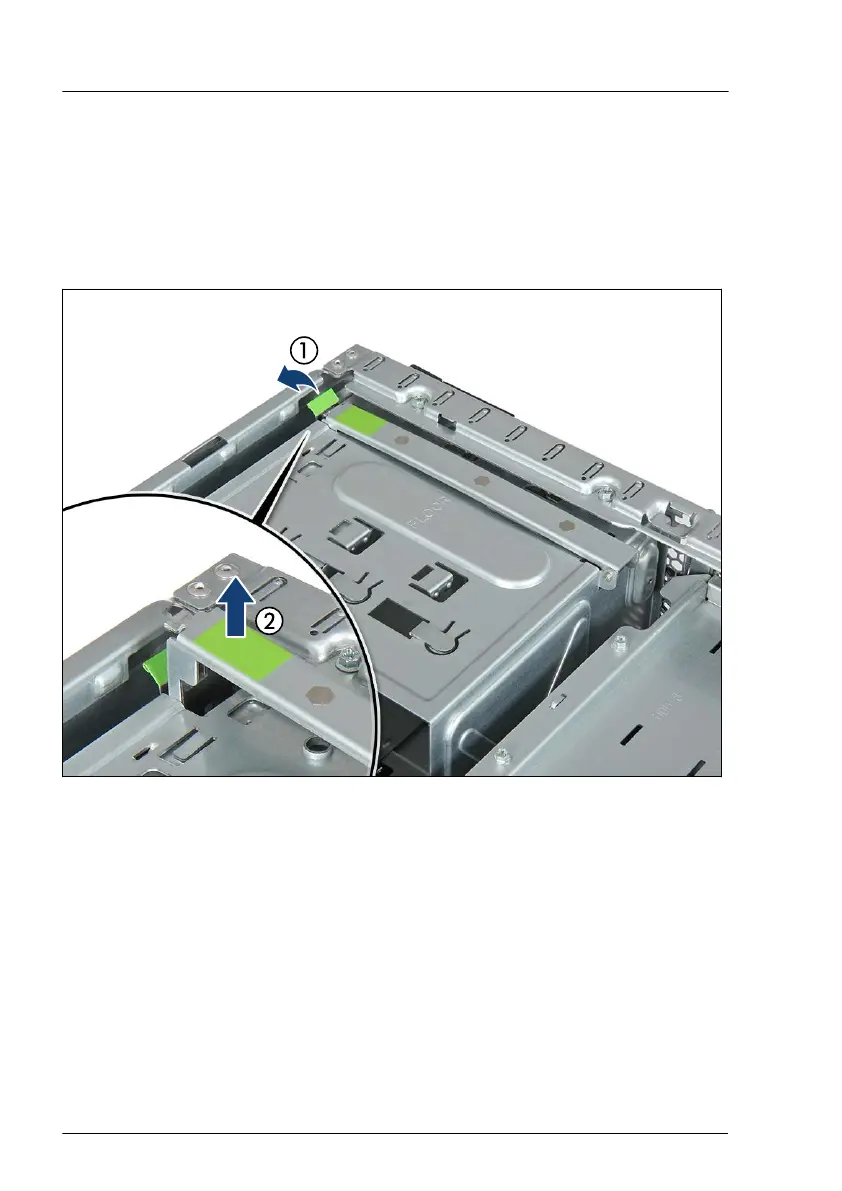

Figure 49: Opening the accessible drive locking bar (floorstand model)
▶
Press out on the locking latch to disengage the accessible drive locking bar
(1).
▶
Fold up the accessible drive locking bar (2).
