4.9 Handling the PCI air duct
4.9.1 Removing the PCI air duct

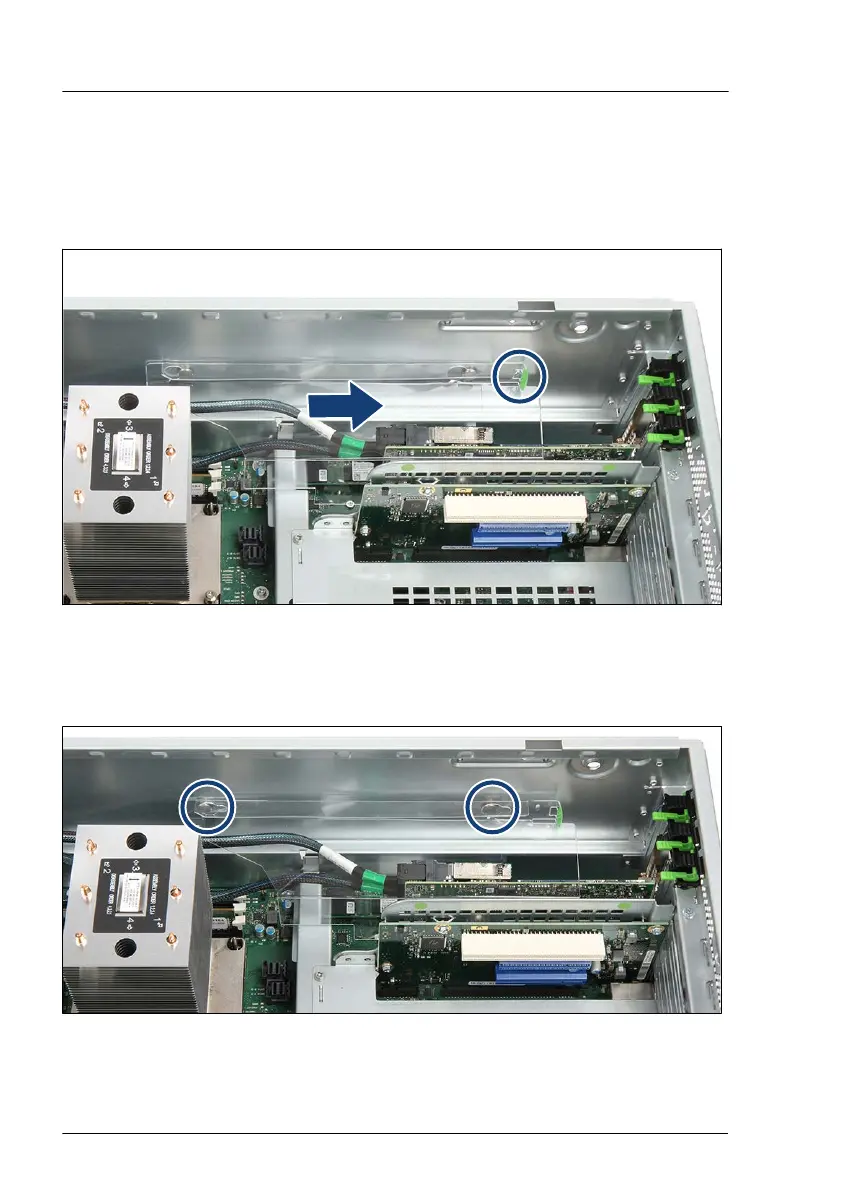

Figure 39: Removing the PCI air duct (A)
▶
Lift up the green locking handle on the PCI air duct (see circle) while sliding
the PCI air duct in direction of the arrow.
Figure 40: Removing the PCI air duct (B)
Basic hardware procedures
88 Upgrade and Maintenance Manual TX2550 M5
