Fujitsu PRIMERGY TX2550 M5 - Data LTO

34TX2550 M5
Data LTO

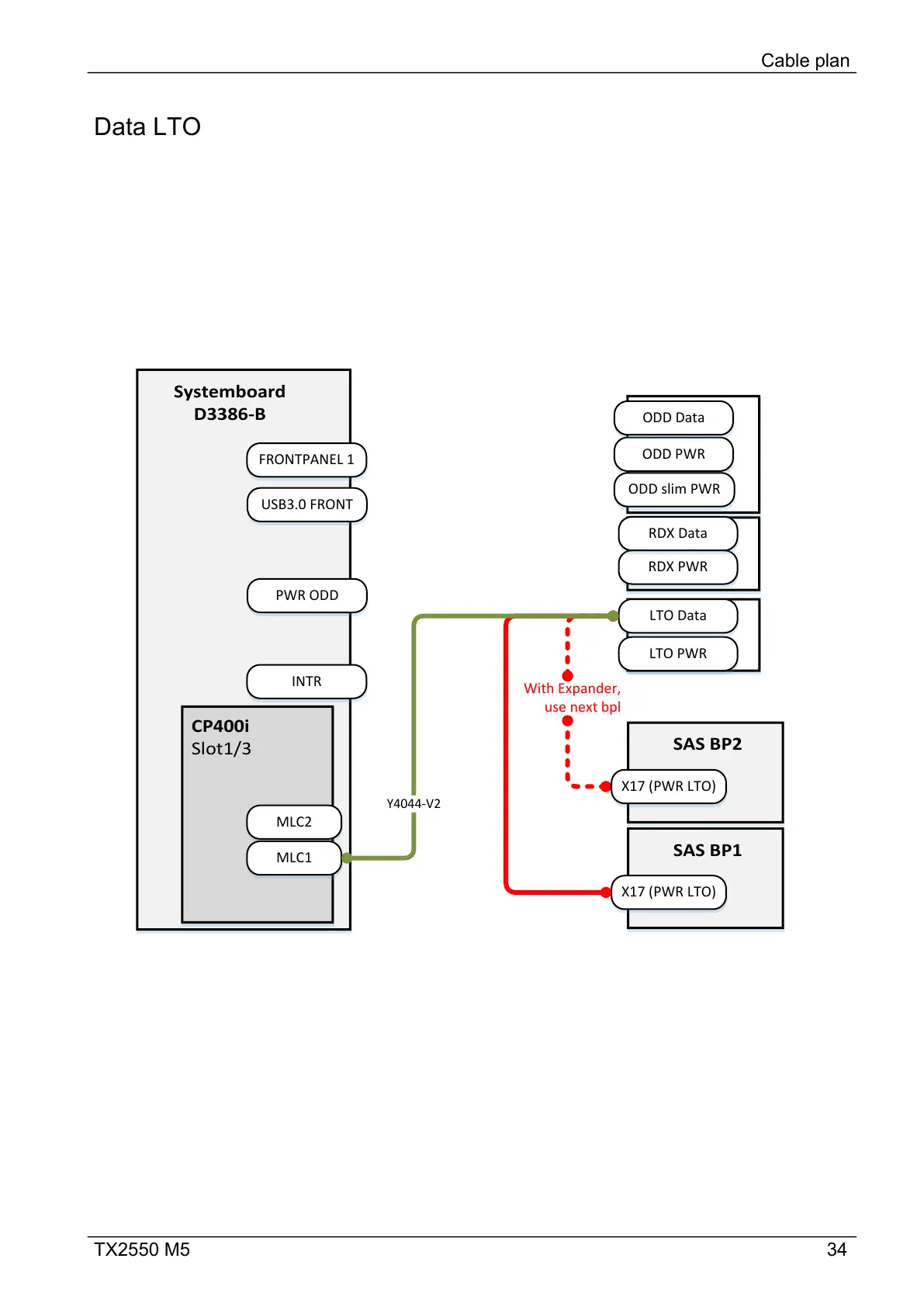

Cable plan
SAS BP1
ODD PWR
ODD Data
RDX PWR
RDX Data
LTO PWR
LTO Data
ODD slim PWR
X17 (PWR LTO)
CP400i
Slot1/3
MLC2
MLC1
With Expander,
use next bpl
With Expander,
use next bpl
Systemboard
D3386-B
USB3.0 FRONT
PWR ODD
INTR
FRONTPANEL 1
SAS BP2
X17 (PWR LTO)
Y4044-V2
