Fujitsu PRIMERGY TX2550 M5 - Basic OOB 6 X Bpl

13TX2550 M5
Basic OOB 6x Bpl

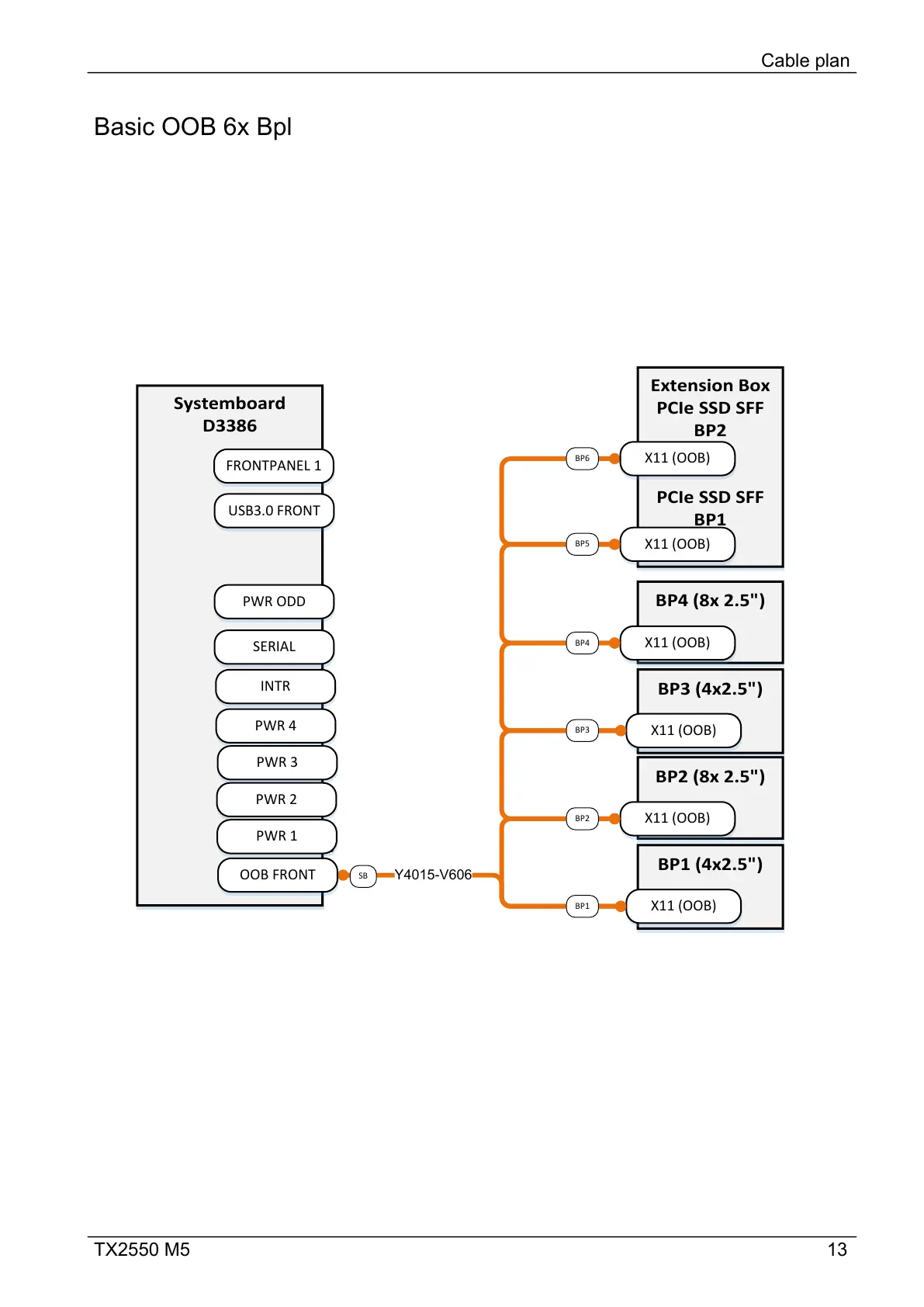

Cable plan
Y4015-V606
SB
SB
Systemboard
D3386
USB3.0 FRONT
PWR 4
PWR ODD
INTR
PWR 3
PWR 2
PWR 1
FRONTPANEL 1
SERIAL
OOB FRONT
BP2 (8x 2.5")
X11 (OOB)
X11 (OOB)
BP1 (4x2.5")
BP4 (8x 2.5")
X11 (OOB)
X11 (OOB)
BP3 (4x2.5")
X11 (OOB)
Extension Box
PCIe SSD SFF
BP2
PCIe SSD SFF
BP1
X11 (OOB)
SB
BP1
BP2
BP3
BP4
BP5
BP6
