Fujitsu PRIMERGY TX2550 M5 - Setting up the floorstand model

4.4.3 Floorstand model
4.4.3.1 Unlocking the server

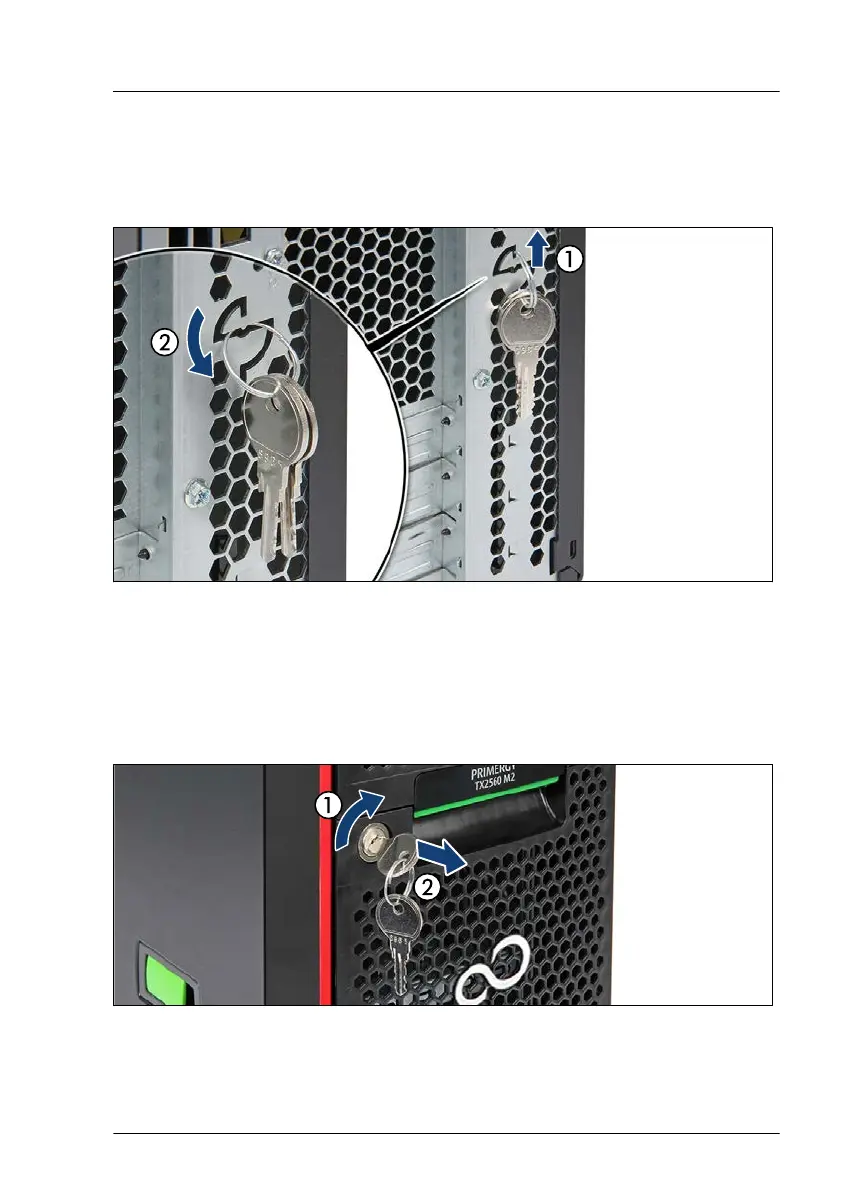

Figure 11: Removing the key
▶
Lift the key ring to unlatch it (1).
▶
T
urn the key ring counterclockwise by 90 degrees (2).
▶
Remove the key ring from the server rear
.
Figure 12: Unlocking the server
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 61
