Fujitsu PRIMERGY TX2550 M5 - Sysboardconn

5TX2550 M5
SysBoardConn

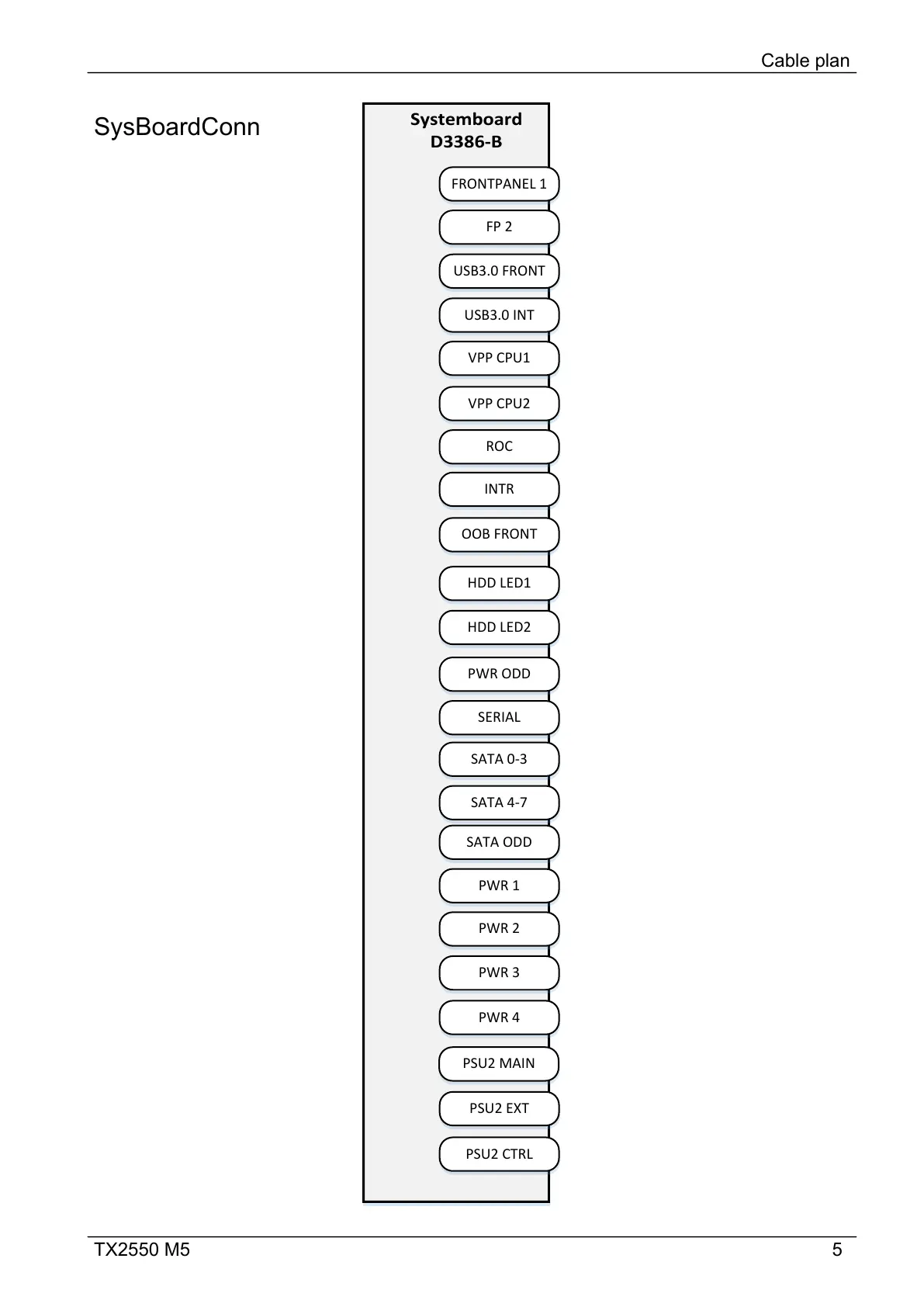

Cable plan
Systemboard
D3386-B
USB3.0 FRONT
PWR 1
VPP CPU2
INTR
PWR 2
PWR 3
PWR 4
FRONTPANEL 1
PWR ODD
ROC
VPP CPU1
HDD LED1
HDD LED2
FP 2
PSU2 EXT
PSU2 CTRL
PSU2 MAIN
USB3.0 INT
OOB FRONT
SERIAL
SATA 0-3
SATA 4-7
SATA ODD
