Fujitsu PRIMERGY TX2550 M5 - Configuration with up to 24 Hdds;Ssds with HDD Extension Box

Position Logical drive
number
ServerView RAID Manager display
name
(Controller ID: Device ID)
[2] 2 Vendor Product (1:2)
[3] 3 Vendor Product (1:3)
[4] 4 Vendor Product (1:4)
[5] 5 Vendor Product (1:5)
[6] 6 Vendor Product (1:6)
[7] 7 Vendor Product (1:7)
7.5.2.3 Configuration with up to 24 HDDs/SSDs with HDD extension
box

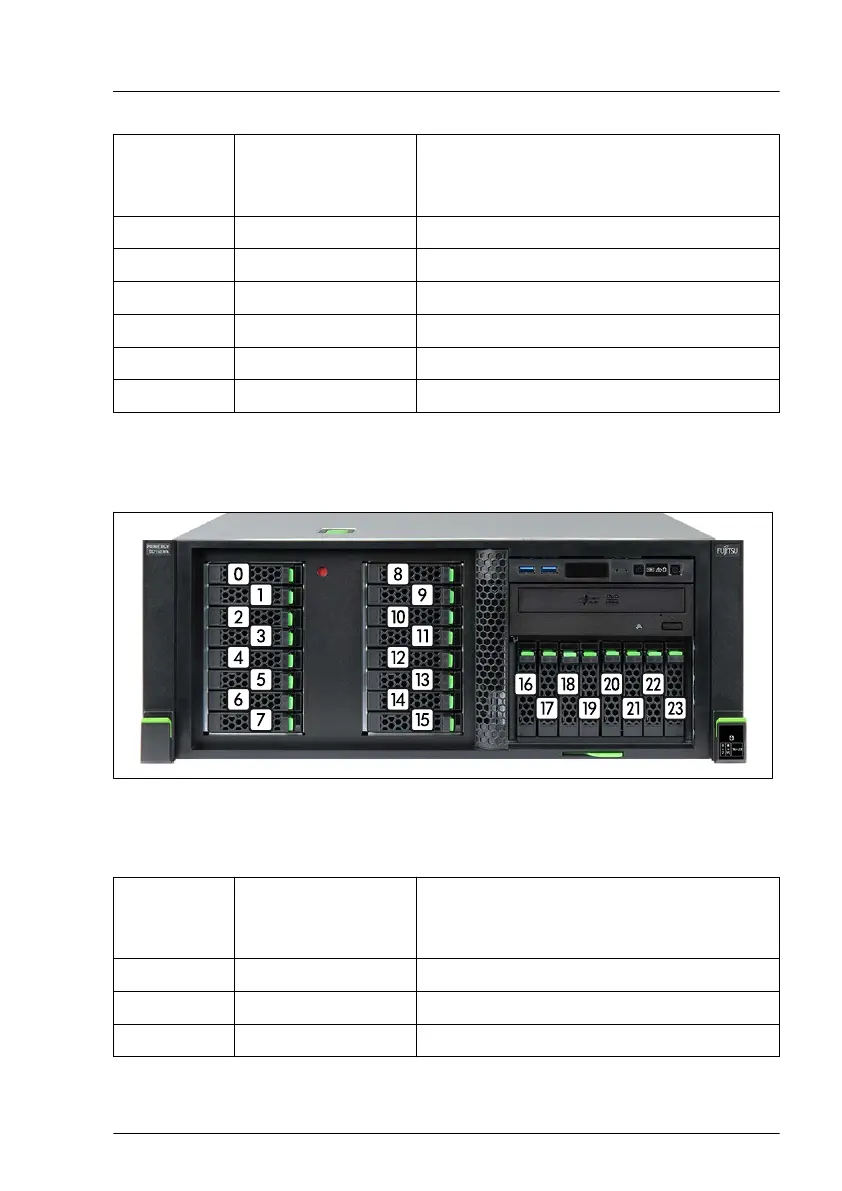

Figure 118: Configuration with up to 24 2.5-inch HDDs/SSDs with HDD extension box
With SAS expander board and one SAS controller
Position Logical drive
number
ServerView RAID Manager display
name
(Controller ID: Device ID)
[0] 0 Vendor Product (0:0)
[1] 1 Vendor Product (0:1)
[2] 2 Vendor Product (0:2)
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 211
