18.1.2 Server rear
18.1.2.1 Server with air cooling

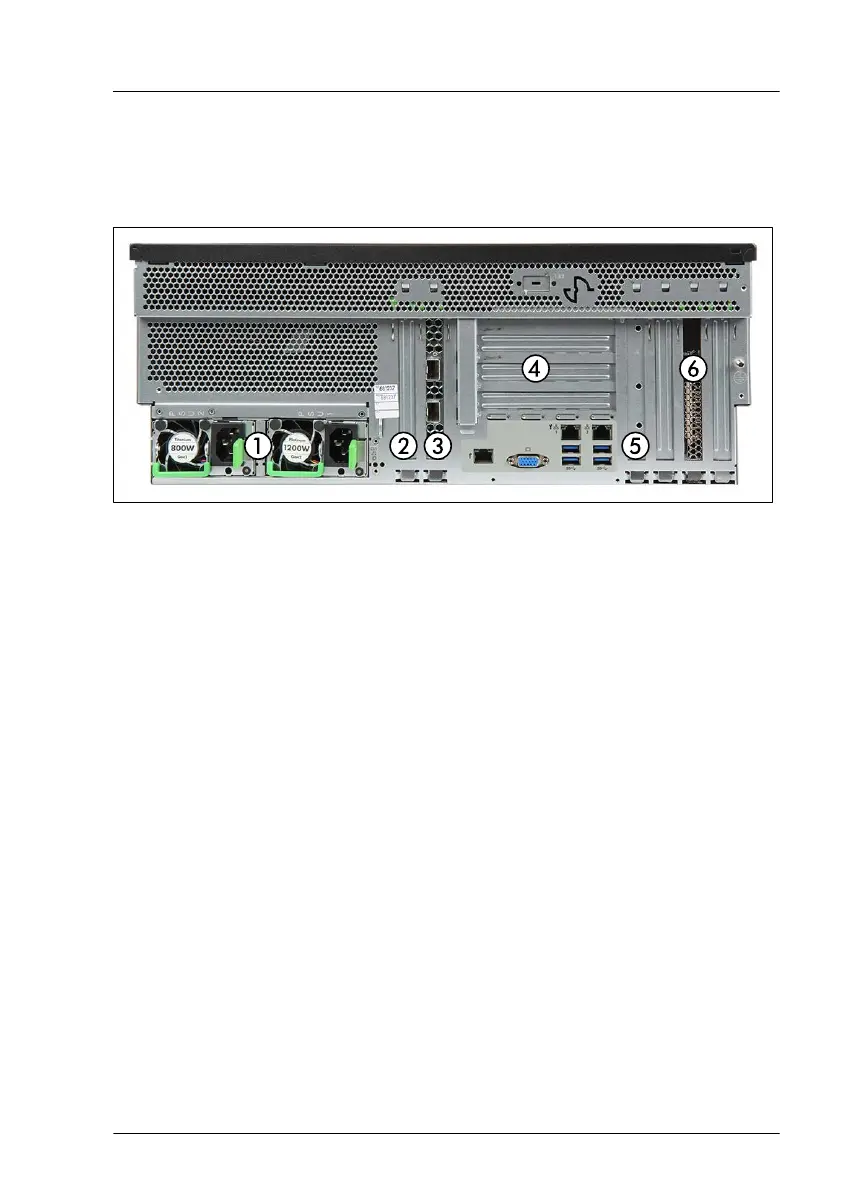

Figure 370: Server rear (rack model)
1 Up to 2 PSUs / dummy cover
2 PCI slot 9
3
PCI slot 8, for OCP module (optional)
4 PCI slots 5, 6, 7, available if a riser
card is installed (optional)
5 PCI slot 4, for riser card (optional)
6 PCI slots 1, 2, 3 (for CPU 1)
