Removing a 2.5-inch HDD/SSD from a 3.5-inch installation frame
Please proceed in reversed order.
Concluding steps
No steps needed.
7.3.3
3.5-inch HDD and 3.5-inch installation frame
Installing or removing the installation frame is only necessary for Japan.
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Preliminary steps
No steps needed.
Installing a 3.5-inch HDD in a 3.5-inch installation frame

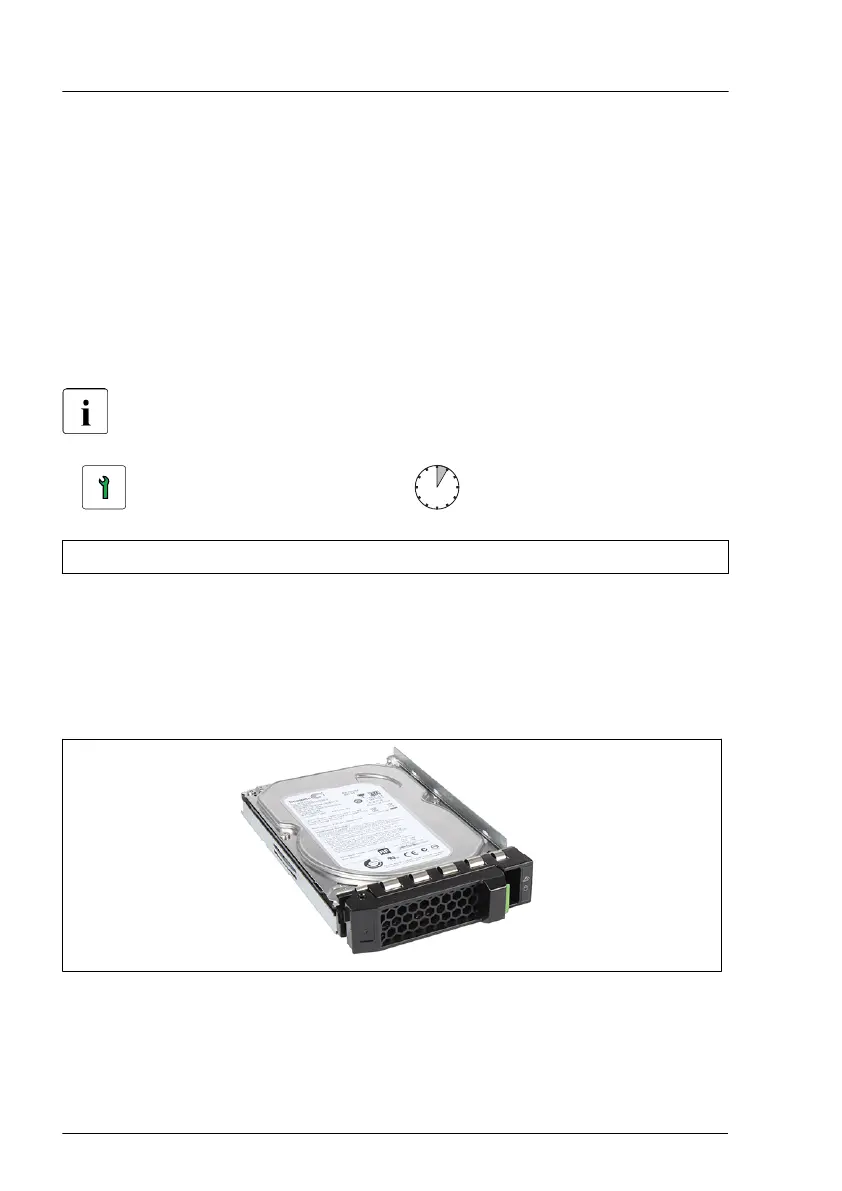

Figure 82: Installing the 3.5-inch HDD in the 3.5-inch installation frame (A)
Lay the 3.5-inch HDD into the 3.5-inch installation frame as shown.
Hard disk drive (HDD) / solid state disk (SSD)
170 Upgrade and Maintenance Manual TX2550 M5
