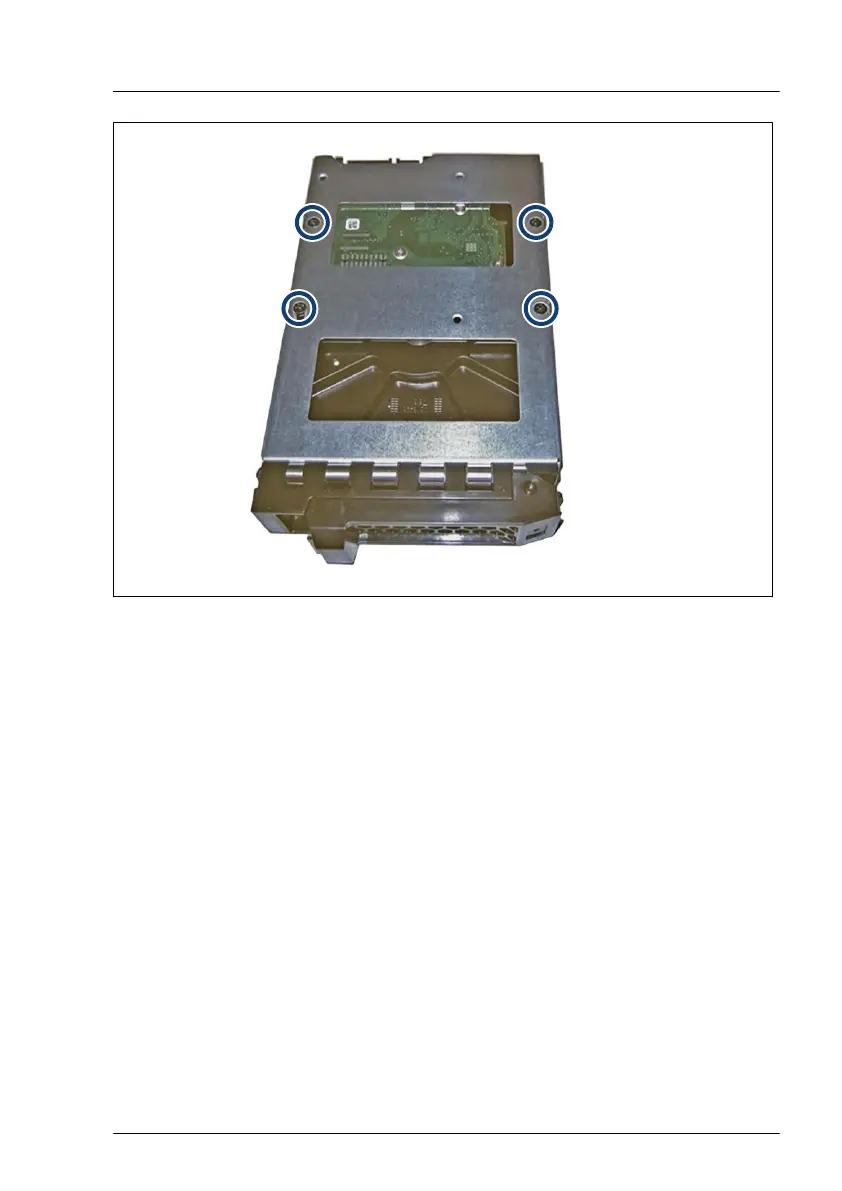

Figure 83: Installing the 3.5-inch HDD in the 3.5-inch installation frame (B)
▶
Fasten the 3.5-inch HDD with four screws.
Removing a 3.5-inch HDD from a 3.5-inch installation frame
▶
Please proceed in reversed order
.
Concluding steps
No steps needed.
Hard disk drive (HDD) / solid state disk (SSD)
TX2550 M5 Upgrade and Maintenance Manual 171
