30TX2550 M5

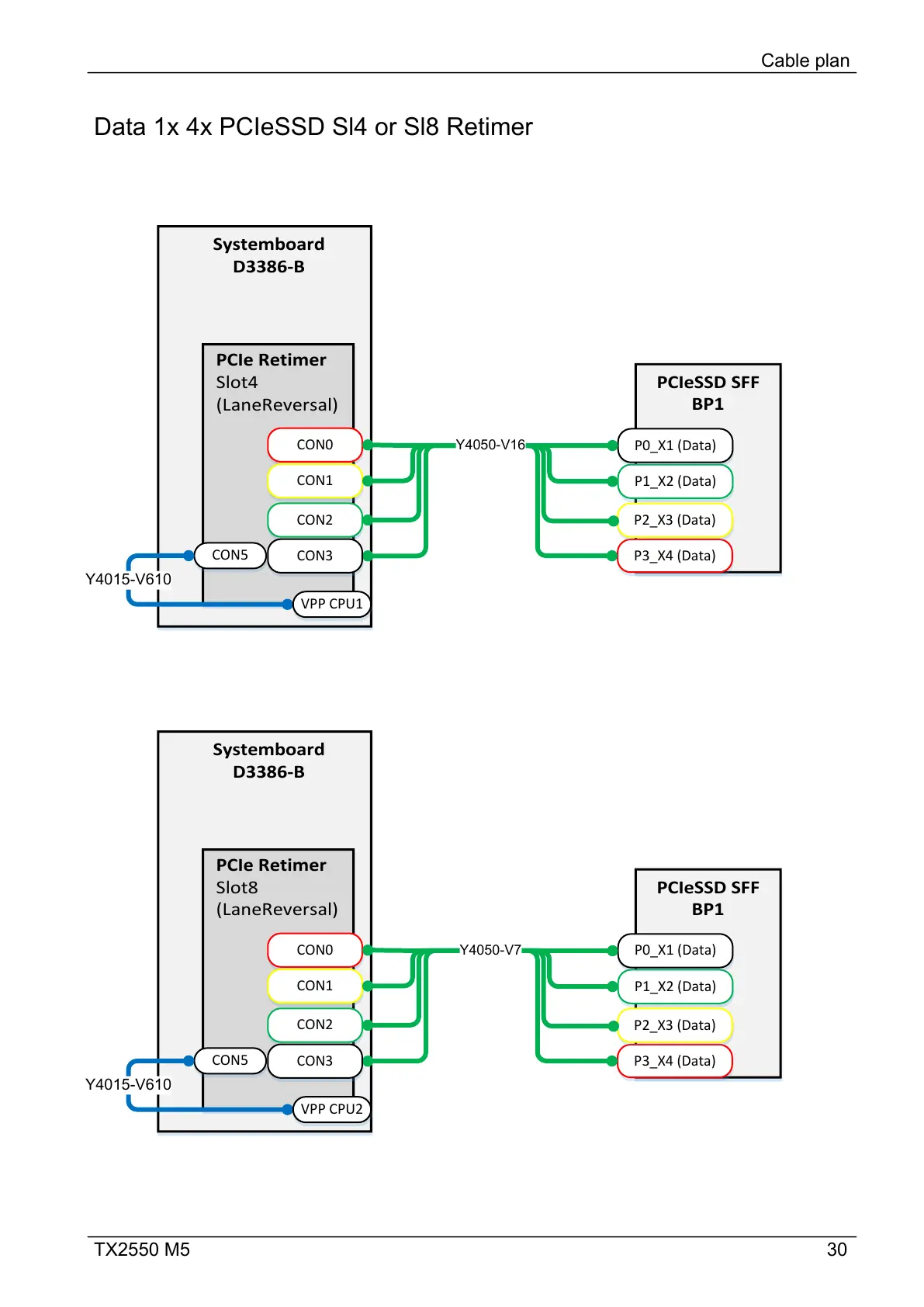

Data 1x 4x PCIeSSD Sl4 or Sl8 Retimer
Cable plan
Systemboard
D3386-B
P3_X4 (Data)
PCIeSSD SFF
BP1
PCIe Retimer
Slot4
(LaneReversal)
CON2
CON3
P2_X3 (Data)
CON0
CON1
P1_X2 (Data)
P0_X1 (Data)
CON5
Y4015-V610
VPP CPU1
Y4050-V16
Systemboard
D3386-B
P3_X4 (Data)
PCIeSSD SFF
BP1
PCIe Retimer
Slot8
(LaneReversal)
CON2
CON3
P2_X3 (Data)
CON0
CON1
P1_X2 (Data)
P0_X1 (Data)
CON5
Y4015-V610
VPP CPU2
Y4050-V7
