Fujitsu PRIMERGY TX2550 M5 - Server Rear; Connectors on the Server Rear

18.2.3 Server rear
18.2.3.1 Connectors on the server rear

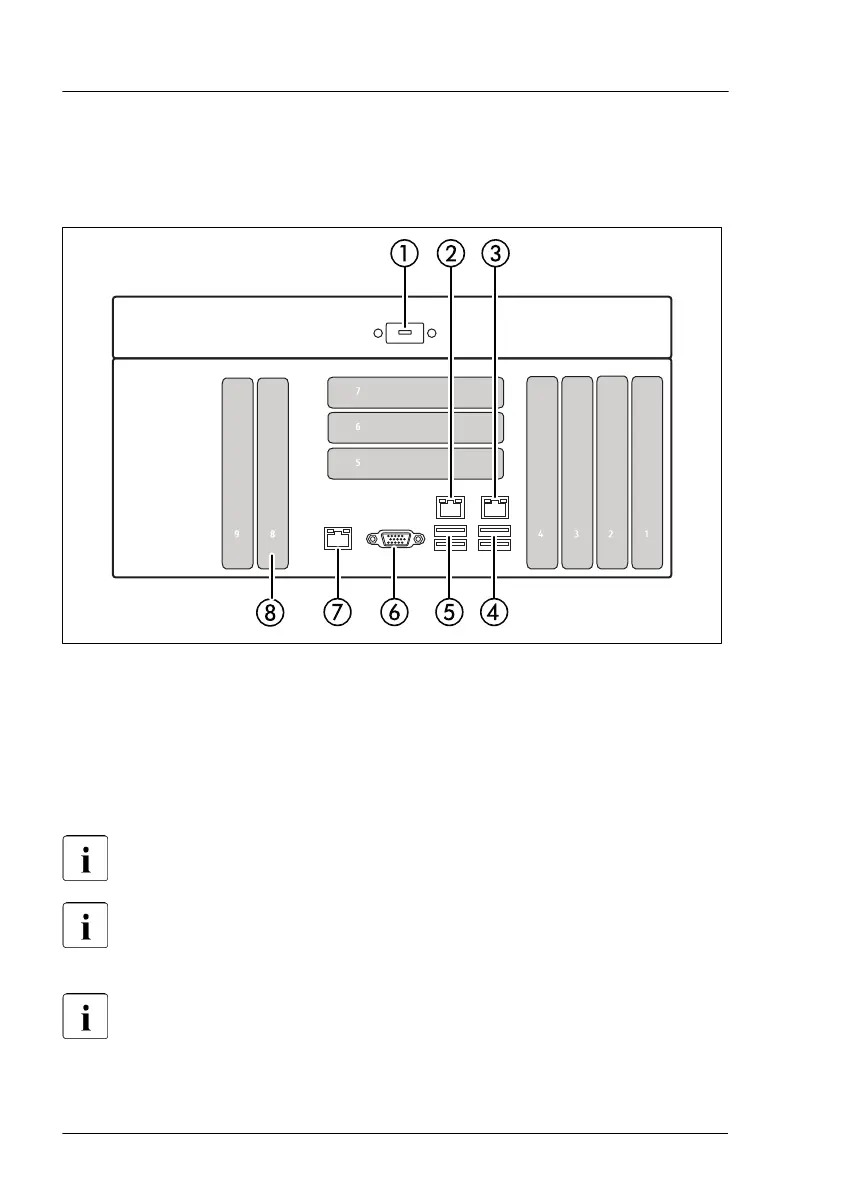

Figure 378: Connectors on the I/O panel
1 Serial connector (optional)
2 Shared LAN connector
3
LAN connector
4 USB 3.0 connectors (2x)
5 USB 3.0 connectors (2x)
6 Video connector (VGA)
7 Management LAN connector (for iRMC
server management function)
8 Dedicated slot for OCP modules
The serial connector can be used as the standard interface or for
communication with iRMC.
Depending on the BIOS settings, the shared LAN connector may also
be used as a management LAN connector. For more information, see
the corresponding BIOS Setup Utility reference manual.
Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
