Fujitsu PRIMERGY TX2550 M5 - Removing the Front Cover; Removing the HDD Bay Cover

4.4.3.4 Removing the HDD bay cover

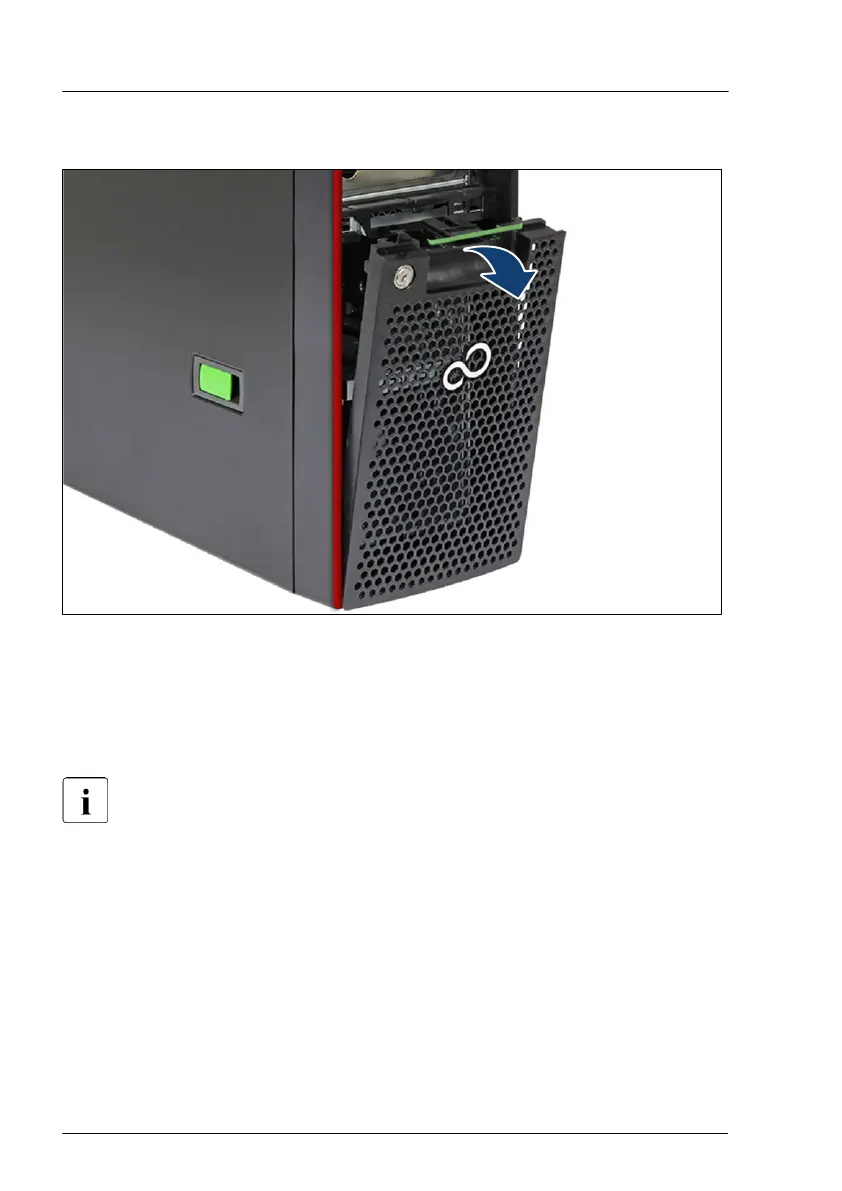

Figure 15: Removing the HDD bay cover
▶
Open the HDD bay cover in the direction of the arrow and remove it.
4.4.3.5
Removing the front cover
You remove the front cover when:
–
Installing or removing accessible drives or HDD extension boxes
–
Converting a floorstand model to a rack model
Basic hardware procedures
64 Upgrade and Maintenance Manual TX2550 M5
