Fujitsu PRIMERGY TX2550 M5 - Installing an M.2 SSD

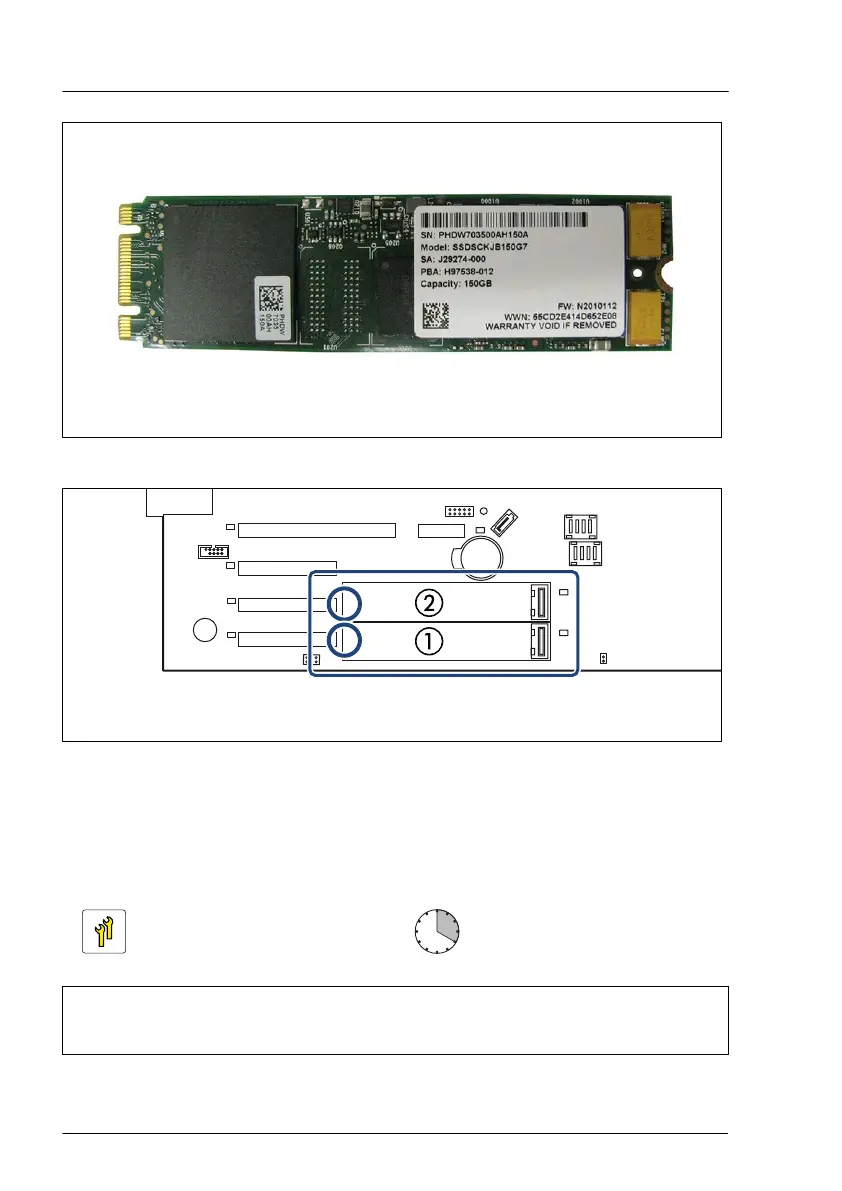

Figure 318: Example M.2 SSD
SERIAL
SATA ODD
JP2
JP1
SSD2
M.2
M.2
SSD1
TPM
JP3
LAN 1
LAN 2 /
USB 3.0
Slot 2 (CPU 1)
Slot 1 (CPU 1)
Slot 4 (CPU 1) - slot riser card
Slot 3 (CPU 1)
SATA
4-7
SATA
0-3
Buzzer
Battery
Figure 319: Slots and bolts for M.2 SSDs
1 M.2 slot 1 2 M.2 slot 2
14.6.2 Installing an M.2 SSD
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 15 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
– Hexagon screw driver
System board and components
492 Upgrade and Maintenance Manual TX2550 M5
