Fujitsu PRIMERGY TX2550 M5 - Basic OOB 5 X Bpl

12TX2550 M5
Basic OOB 5x Bpl

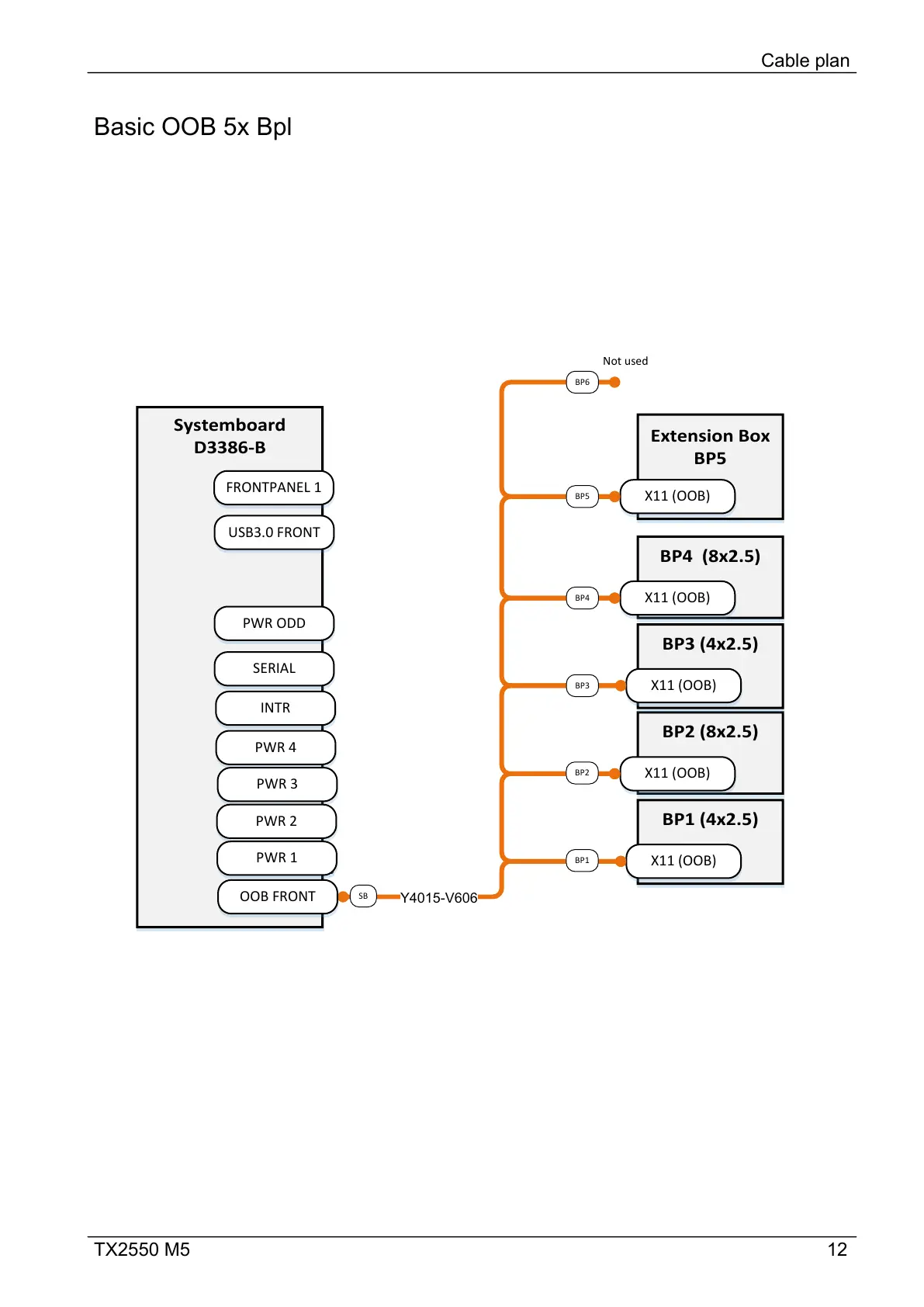

Cable plan
Y4015-V606
SB
SB
Systemboard
D3386-B
USB3.0 FRONT
PWR 4
PWR ODD
INTR
PWR 3
PWR 2
PWR 1
FRONTPANEL 1
SERIAL
OOB FRONT
BP2 (8x2.5)
X11 (OOB)
Extension Box
BP5
X11 (OOB)
X11 (OOB)
BP1 (4x2.5)
BP4 (8x2.5)
X11 (OOB)
X11 (OOB)
BP3 (4x2.5)
Not used
SB
BP1
BP2
BP3
BP4
BP5
BP6
