4.5.3.4 Sliding the server into the rack

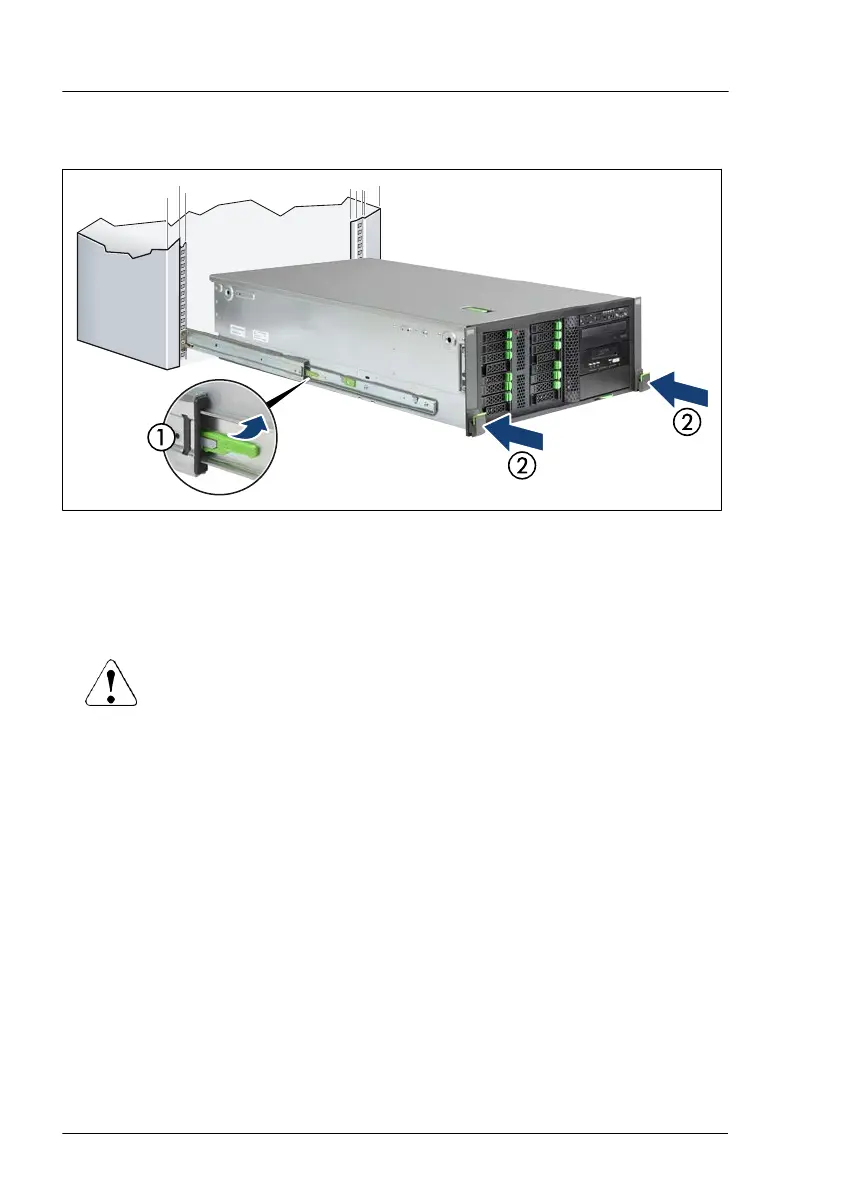

Figure 25: Sliding the server into the rack
▶
Release the locking mechanism of both rails (1).
▶
Push the server as far as it will go into the rack (2) until the quick-release
levers engage.
CAUTION
▶
Be careful with your fingers. You can pinch them when the quick
release levers change to the release position.
▶
Connect all cables except the power cord to the server rear.
Basic hardware procedures
74 Upgrade and Maintenance Manual TX2550 M5
