14.7 Dual microSD 64GB Enterprise
14.7.1 Position of the Dual microSD 64GB Enterprise
USB3.0
Front
ODD
Front
Panel 1
USB2.0
Internal
PSU1
PSU 2
CTRL
FAN 11/12
Intrusion
USB3.0
Internal
ROC
LCD
PSU2 EXT
PSU2 MAIN
Front Panel
2
PWR1 PWR2 PWR3 PWR4
CPU 2 DIMM 1J
CPU 2 DIMM 1H
CPU 2 DIMM 1G

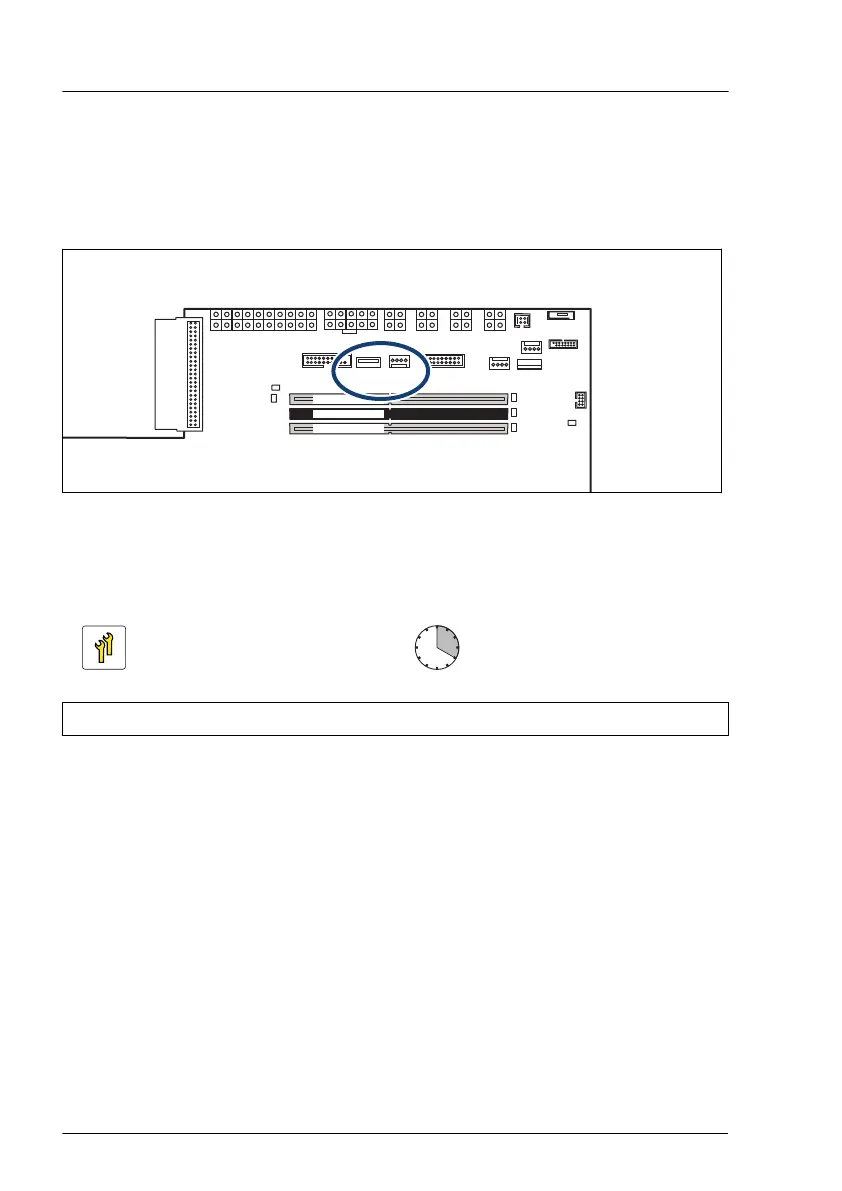

Figure 324: Position on the system board
14.7.2 Installing the Dual microSD 64GB Enterprise
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 15 minutes
Tools: tool-less
Preliminary steps
▶
"Shutting down the server" on page 49
.
▶
"Disconnecting the power cord" on page 50.
▶
"Getting access to the component" on page 51.
▶
"Removing the system air duct" on page 67.
System board and components
