Fujitsu PRIMERGY TX2550 M5 - Access to the drives (floorstand model)

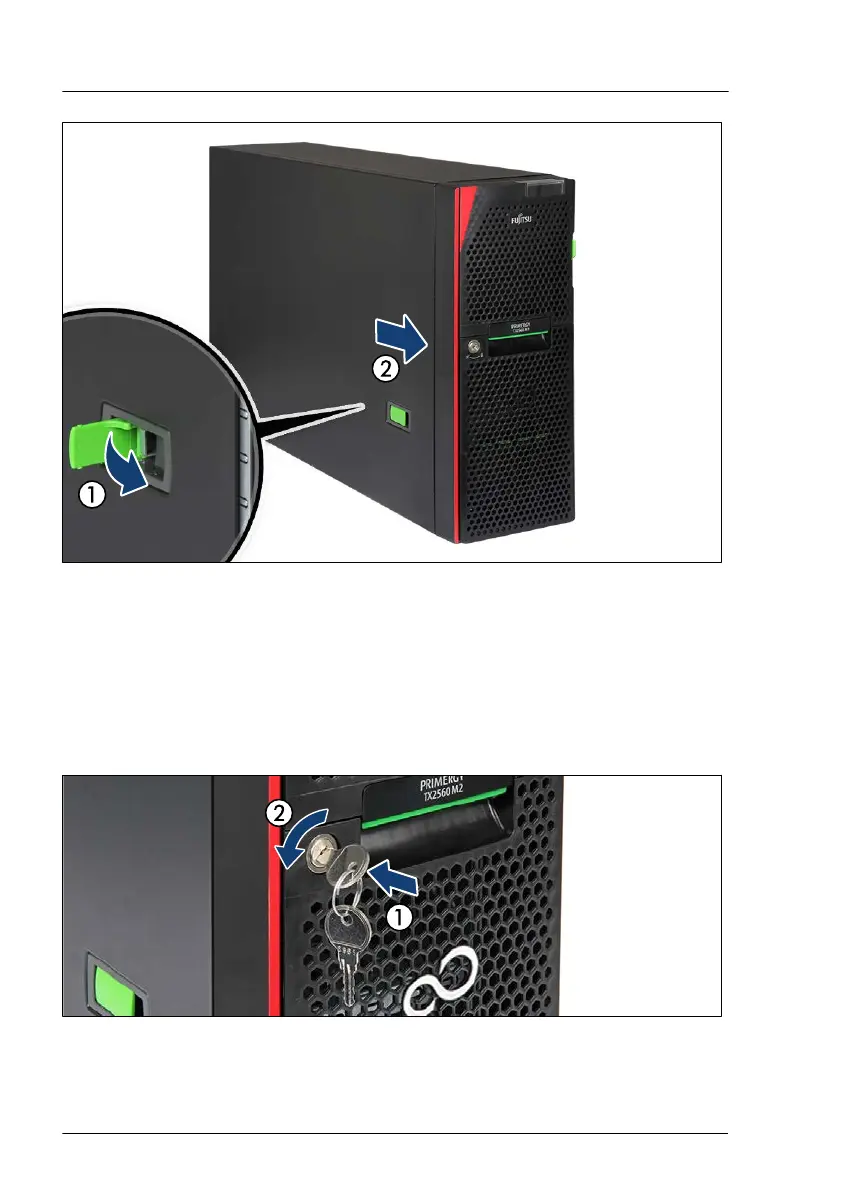

Figure 31: Installing the side cover (floorstand model) (B)
▶
Close the locking lever on the side cover (1). This will push the top cover
shut engaging the locking mechanism (2).
▶
Connect all cables except the power cord to the server rear.
4.5.4.5
Locking the server
Figure 32: Locking the server
Basic hardware procedures
80 Upgrade and Maintenance Manual TX2550 M5
