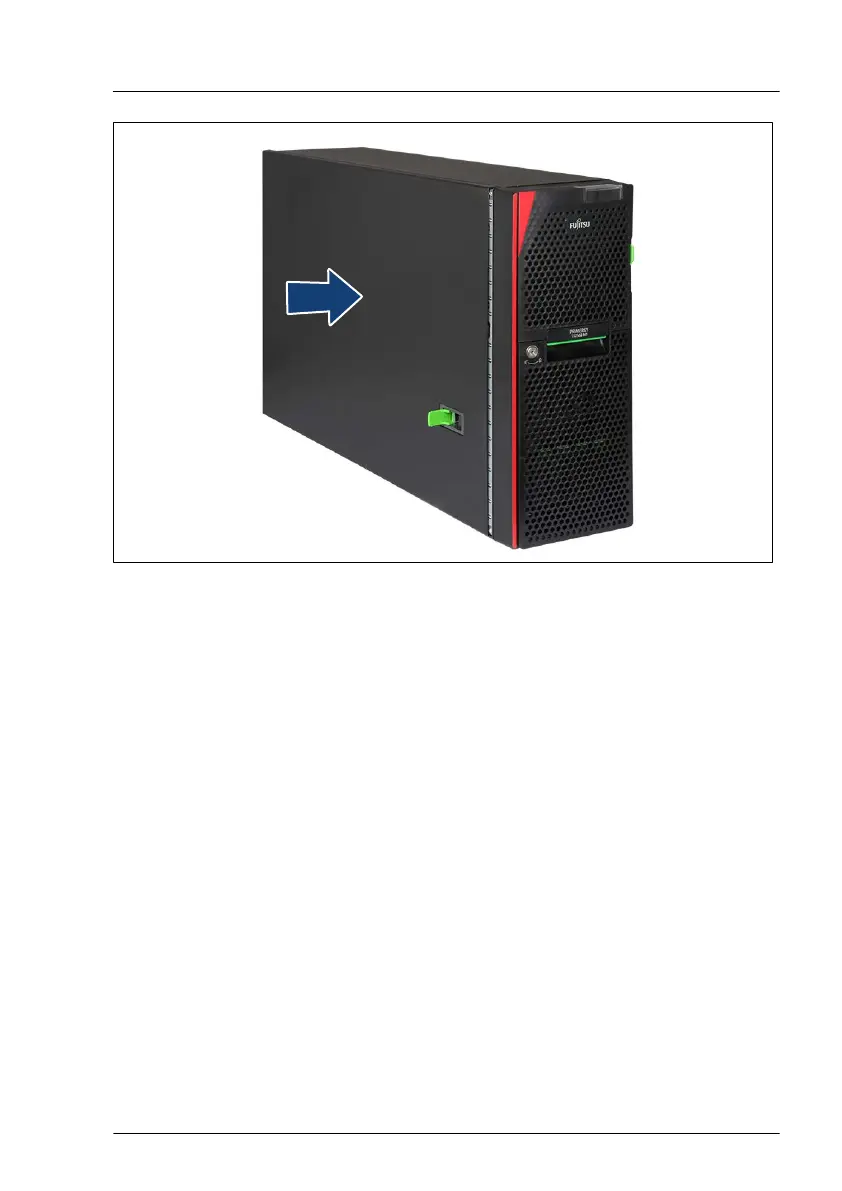

Figure 30: Installing the side cover (floorstand model) (A)
▶
Open the locking lever on the side cover.
▶
Fit the top cover on the chassis, aligning it according to the edge guide
marking on the upper server surface.
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 79
