Fujitsu PRIMERGY TX2550 M5 Upgrade And Maintenance Manual

2TX2550 M5

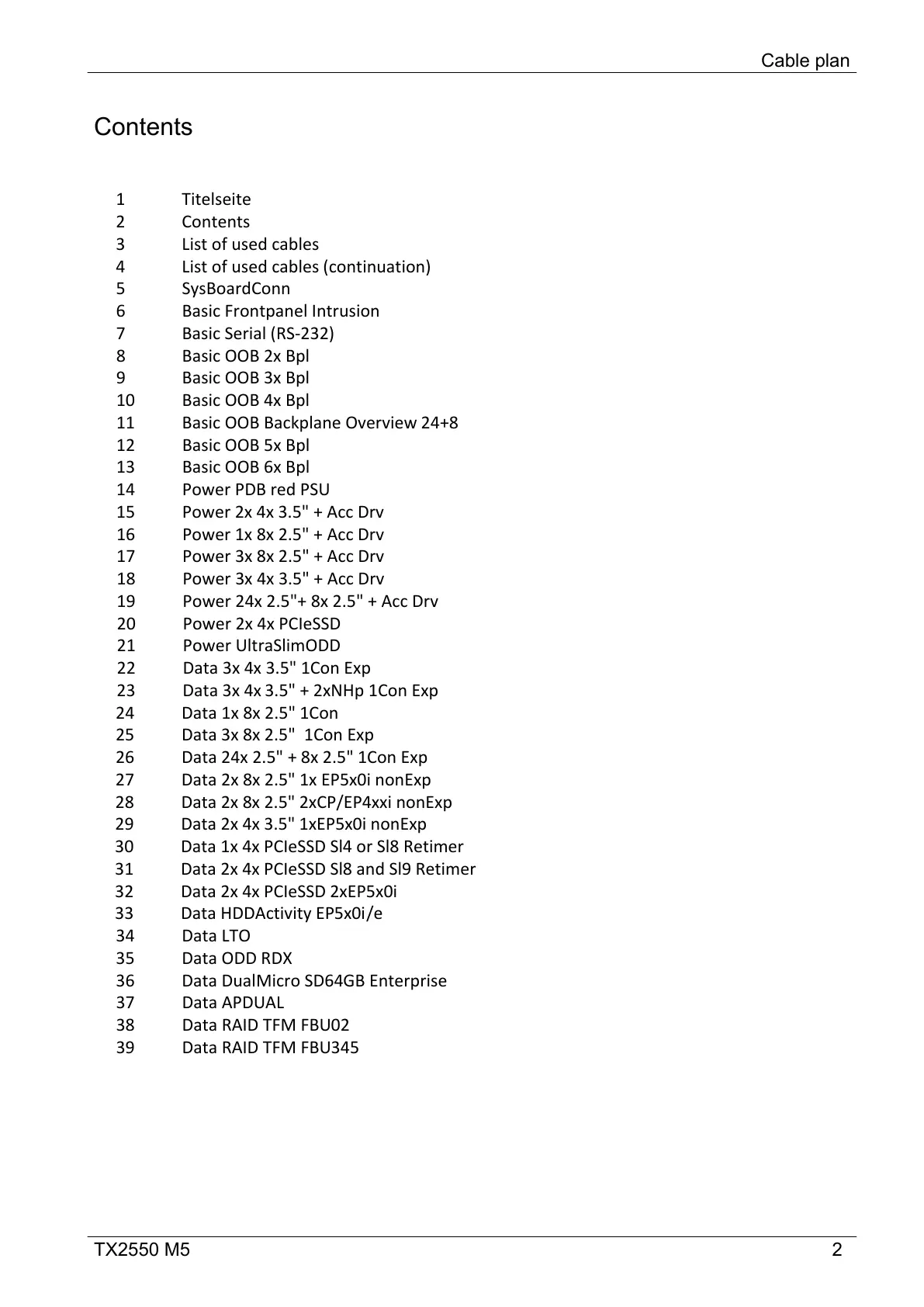

Contents
Cable plan
1 Titelseite
2 Contents
3 List of used cables
4 List of used cables (continuation)
5 SysBoardConn
6 Basic Frontpanel Intrusion
7 Basic Serial (RS-232)
8 Basic OOB 2x Bpl
9 Basic OOB 3x Bpl
10 Basic OOB 4x Bpl
11 Basic OOB Backplane Overview 24+8
12 Basic OOB 5x Bpl
13 Basic OOB 6x Bpl
14 Power PDB red PSU
15 Power 2x 4x 3.5" + Acc Drv
16 Power 1x 8x 2.5" + Acc Drv
17 Power 3x 8x 2.5" + Acc Drv
18 Power 3x 4x 3.5" + Acc Drv
19 Power 24x 2.5"+ 8x 2.5" + Acc Drv
20 Power 2x 4x PCIeSSD
21 Power UltraSlimODD
22 Data 3x 4x 3.5" 1Con Exp
23 Data 3x 4x 3.5" + 2xNHp 1Con Exp
24 Data 1x 8x 2.5" 1Con
25 Data 3x 8x 2.5" 1Con Exp
26 Data 24x 2.5" + 8x 2.5" 1Con Exp
27 Data 2x 8x 2.5" 1x EP5x0i nonExp
28 Data 2x 8x 2.5" 2xCP/EP4xxi nonExp
29 Data 2x 4x 3.5" 1xEP5x0i nonExp
30 Data 1x 4x PCIeSSD Sl4 or Sl8 Retimer
31 Data 2x 4x PCIeSSD Sl8 and Sl9 Retimer
32 Data 2x 4x PCIeSSD 2xEP5x0i
33 Data HDDActivity EP5x0i/e
34 Data LTO
35 Data ODD RDX
36 Data DualMicro SD64GB Enterprise
37 Data APDUAL
38 Data RAID TFM FBU02
39 Data RAID TFM FBU345

Fujitsu PRIMERGY TX2550 M5 Specifications

General

Tcase	78 °C
Scalability	2S
Processor cache	13.75 MB
Processor cores	10
Processor model	4210
System bus rate	- GT/s
Processor socket	LGA 3647 (Socket P)
Processor threads	20
Processor codename	Cascade Lake
Execute Disable Bit	Yes
Processor frequency	2.2 GHz
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	76.0 x 56.5 mm
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX-512
Thermal Design Power (TDP)	85 W
Number of processors installed	1
Maximum number of PCI Express lanes	48
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Maximum internal memory supported by processor	1024 GB
Memory slots	12
Internal memory	16 GB
Memory clock speed	2933 MHz
Maximum internal memory	1500 GB
HDD size	2.5 \
RAID levels	0, 1, 5, 6, 10, 50, 60
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Optical drive type	No
Total storage capacity	0 GB
Maximum storage capacity	- TB
Number of HDDs supported	8
Chassis type	Tower
Product color	Black, Red
Operating system installed	-
Compatible operating systems	Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Storage Server 2012 R2 Standard VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 Red Hat Enterprise Linux
Power supply	800 W
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	CB, RoHS, WEEE, GS, CE, CSAc/us, FCC Class A, VCCI, KN32, KN35, CCC, C-Tick
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
PCI Express slots version	3.0
On-board graphics card model	Not available
Processor ARK ID	193384

Weight and Dimensions

Depth	177 mm
Width	448 mm
Height	736 mm
