Fujitsu PRIMERGY TX2550 M5 - Power 24 X 2.5+ 8 X 2.5 + Acc Drv

19TX2550 M5
Power 24x 2.5"+ 8x 2.5" + Acc Drv

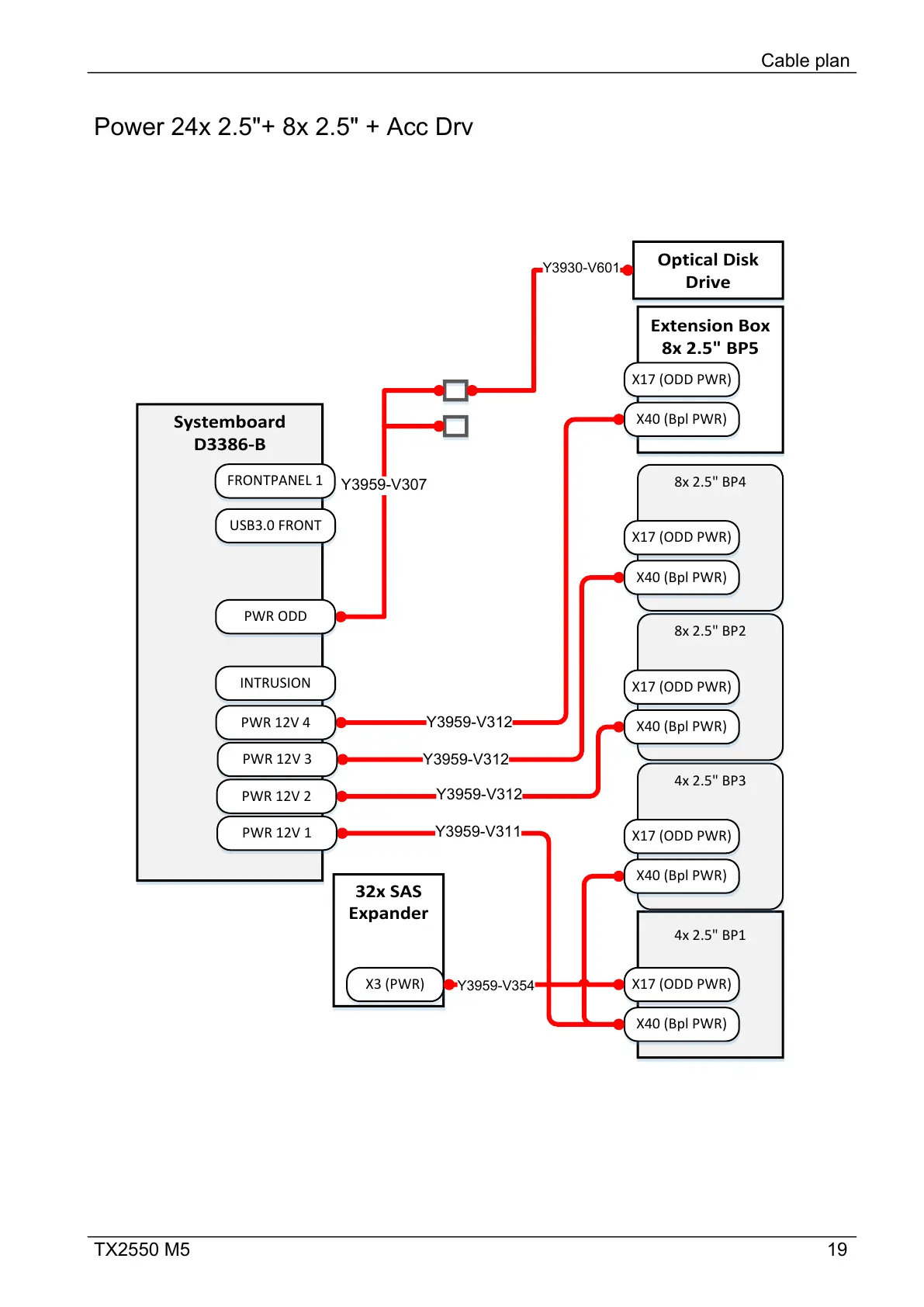

Cable plan
Optical Disk
Drive
4x 2.5" BP1
X40 (Bpl PWR)
Y3959-V311
Y3959-V312
X17 (ODD PWR)
Y3959-V307
Y3930-V601
Y3959-V312
32x SAS
Expander
X3 (PWR)
Y3959-V354
Y3959-V312
Systemboard
D3386-B
USB3.0 FRONT
PWR 12V 4
PWR ODD
INTRUSION
PWR 12V 3
PWR 12V 2
PWR 12V 1
FRONTPANEL 1
X40 (Bpl PWR)
X17 (ODD PWR)
4x 2.5" BP3
X40 (Bpl PWR)
X17 (ODD PWR)
8x 2.5" BP2
X40 (Bpl PWR)
X17 (ODD PWR)
8x 2.5" BP4
X40 (Bpl PWR)
X17 (ODD PWR)
Extension Box
8x 2.5" BP5
