4.8.2.2 Installing the riser module

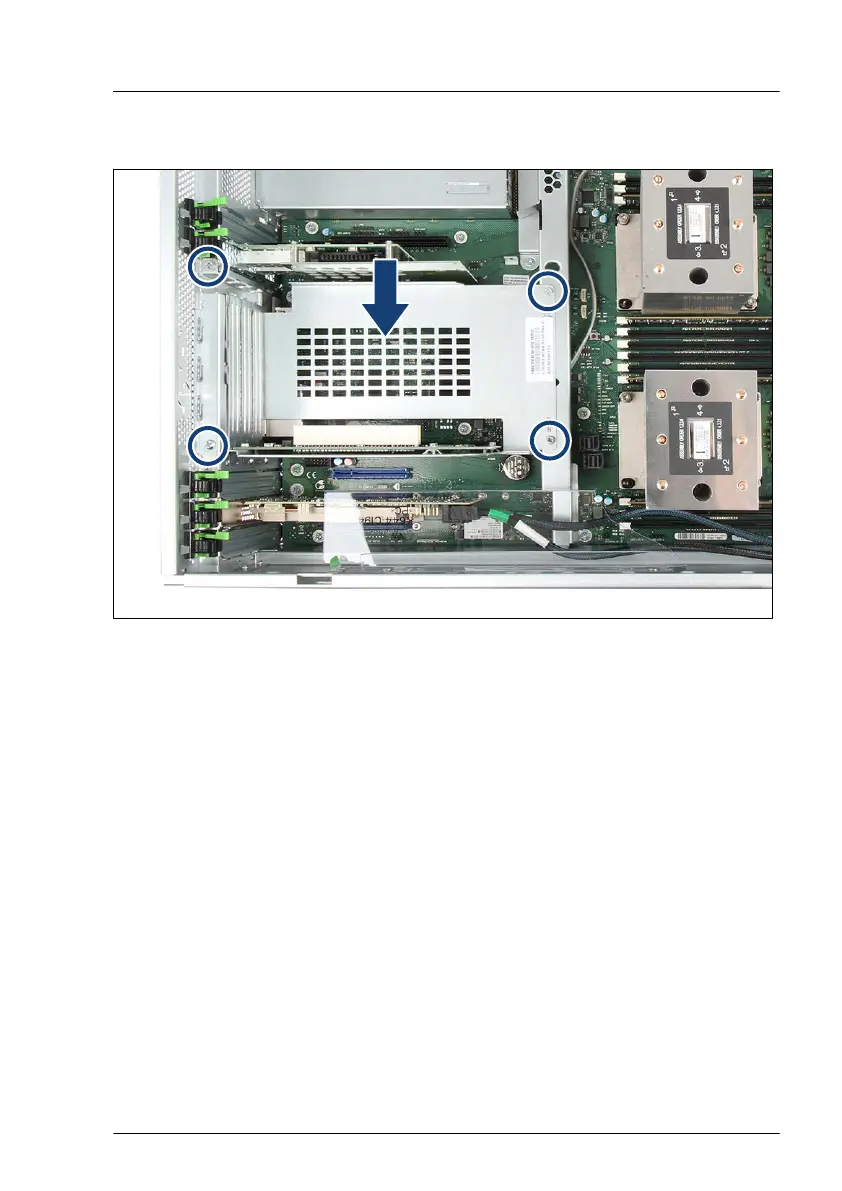

Figure 38: Installing the riser module
▶
Carefully insert the riser module.
▶
Press down firmly until the riser card is completely fitted in slot 4.
▶
If applicable, install the slot cover lock.
▶
Fasten the riser module to the crossbar and chassis with four screws (see
circles).
Basic hardware procedures
TX2550 M5 Upgrade and Maintenance Manual 87
