Fujitsu PRIMERGY TX2550 M5 Upgrade And Maintenance Manual

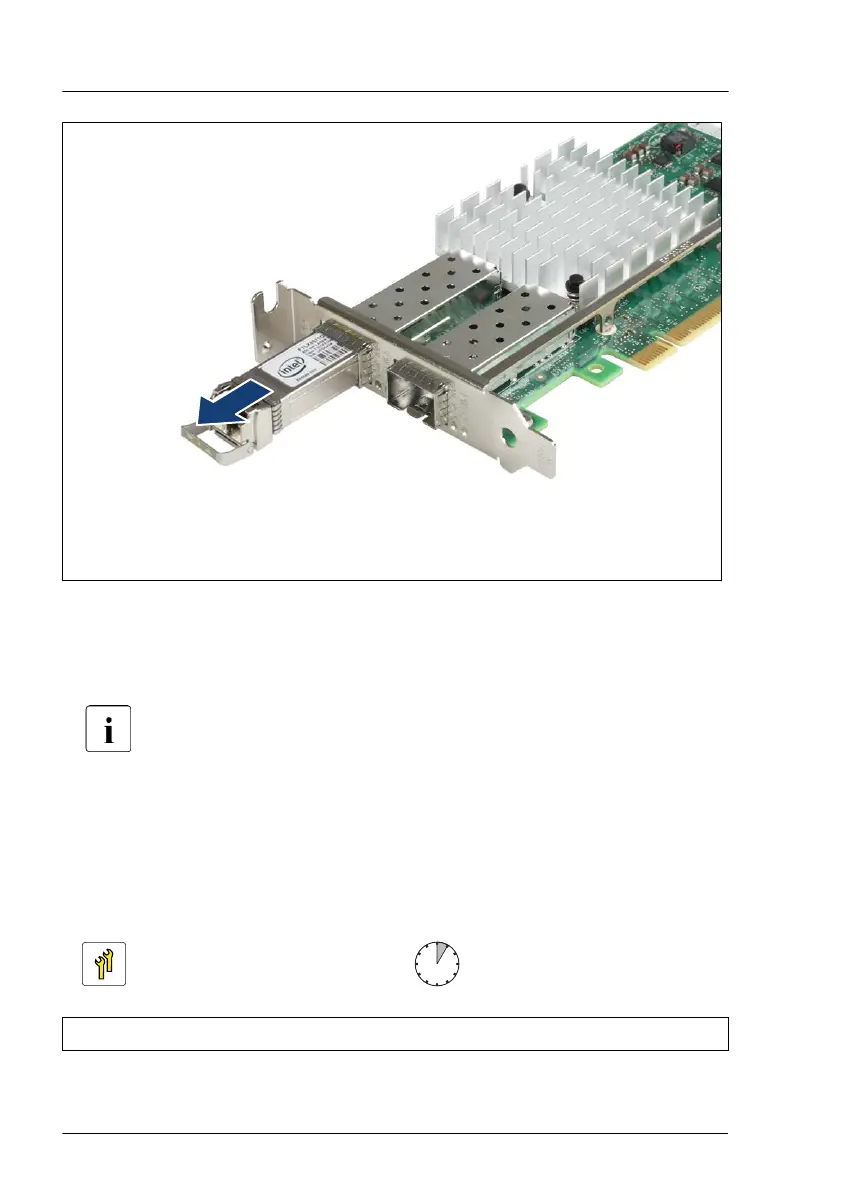

Figure 214: Removing the SFP+ transceiver module
▶
Pull the SFP+ transceiver module out of its socket connector.
▶
Attach the protective cap to the SFP+ transceiver module.
Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
9.5 OCP (Open Compute Project) modules
9.5.1 Installing an OCP module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Expansion cards and backup units
338 Upgrade and Maintenance Manual TX2550 M5
