18 Appendix A
18.1 Mechanical overview
18.1.1
Server front
18.1.1.1 2.5-inch HDD/SSD model
The PRIMERGY TX2550 M5 server is available as a floorstand model and a
rack model.
The floorstand model can be converted to a rack model using an
optional conversion kit.

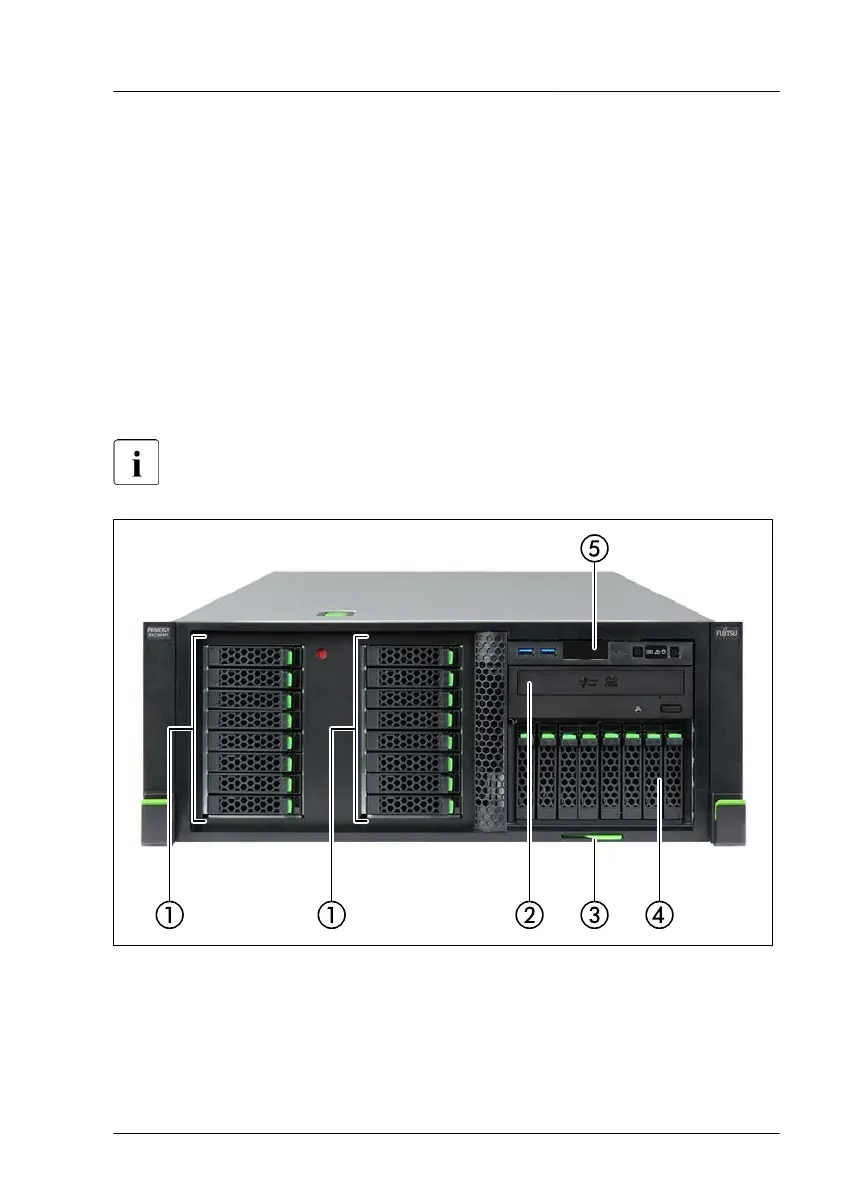

Figure 366: Server front 2.5-inch HDD/SSD model (rack model)
1 2.5-inch HDDs / SSDs / dummy
modules
2 ODD / 5.25-inch dummy module
3 ID card
4 8x 2.5-inch HDD extension box / 8x
2.5-inch PCIe SSD extension box
5 Front panel module
TX2550 M5 Upgrade and Maintenance Manual 557
